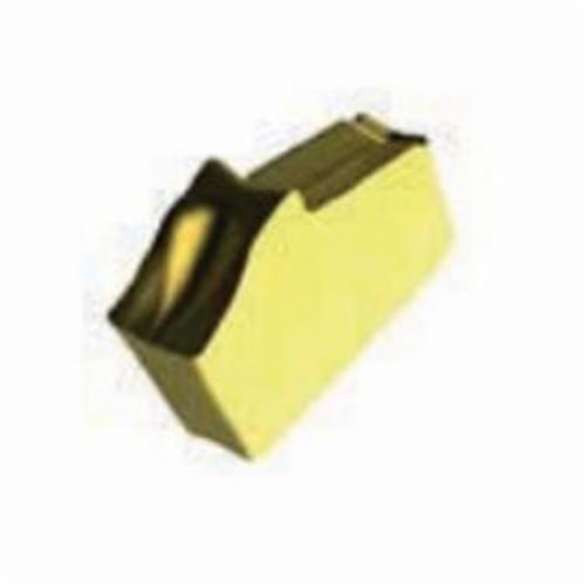

Pramet 6752366 Cut-Off/Parting Insert, LFMX, 6640

• 6640 - Substrate without cubic carbides (type H)
• Thin coating with TiCN supporting layer, applied with the MT-CVD method
• Especially for semi-roughing and roughing
• Lower to medium cutting speeds
• Interrupted cut and suited to unfavorable machining conditions
• Universal cutting geometry characterized by a low cutting resistance
• Recommended for continuous cut
• 25 deg clearance
• 0.05 to 0.13 mm inscribed circle tolerance
• +/-0.13 mm THK tolerance
• Gold color
• 0.003 to 0.007 in/rev cutting feed
• Insert for parting and grooving with 25 deg clearance and one cutting edge
• M-class tolerance (0.08 to 0.18 mm L cutting edge)
• +/-0.0015 in cutting width tolerance
• 7 deg cutting edge

Pramet Cut-Off/Parting Insert| LFMX Insert| Rectangle| 0.122 in W| .20SNF2 Chipbreaker| 0.008 in Corner Radius| Manufacturer's Grade: 6640| LFMX 3.1-.20SNF2 ISO Code| Neutral Hand| CVD Coated| Material Grade: K| M| P| S
