Seco 00048855 Parting-Off Insert, ANSI Code: 150.10-4N-16 CP600, 4 150.10 Insert, Material Grade: M, 4.1 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 0 deg Relief Angle, Carbide, Manufacturer's Grade: CP600, PVD-TiAlN+TiN Coated
SECO 00048855
$28.24
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Material: Carbide
- Insert Style: 150.1
- Insert Size: 4
- Lead Angle Direction: Neutral
- Lead Angle: 0 Degree
- Material Grade: M
- Manufacturer's Grade: CP600
- Series: 150.10
- Capacity: 5 mm
- Chipbreaker: 16
- Coating: TiAlN/TiN
- Coating Process: PVD
- Corner Radius: 0.23 in
- Cutting Width: 0.1610 in
- Cutting Width - Metric: 4.1 mm
- Hand of Insert: Neutral
- Manufacturer Grade: CP600
- Overall Length: 0.3540 in
- Part Number: 48855
- Relief Angle: 0 Degree
- Single or Double End: Single
- Width - Metric: 4.1 mm
- Very tough micrograin grade intended for stainless steels and steels applicable but generally applicable when ever high edge toughness required e.g. more difficult interrupted cuts

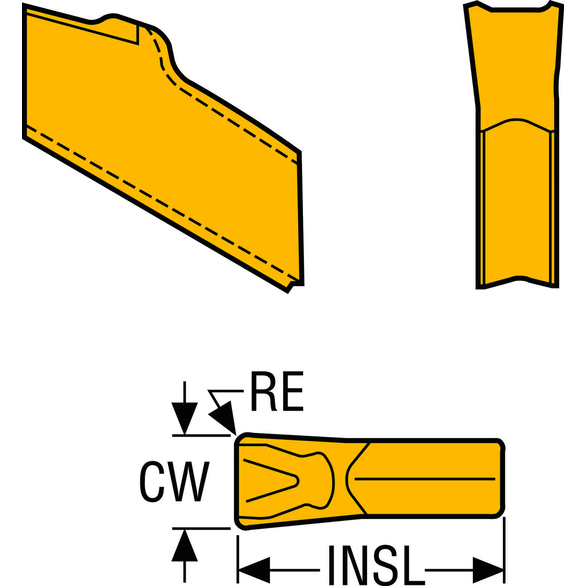

Seco Parting-Off Insert | 150.10 Insert | 4 Insert | 4.1 mm Cutting Width | 0 deg Lead Angle | Neutral Lead Angle Direction | 0 deg Relief Angle | 4.1 mm Width | 9 mm Length | 16 Chipbreaker | 0.23 mm Corner Radius | Manufacturer's Grade: CP600 | ANSI Code: 150.10-4N-16 CP600 | Neutral Hand of Insert | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M
