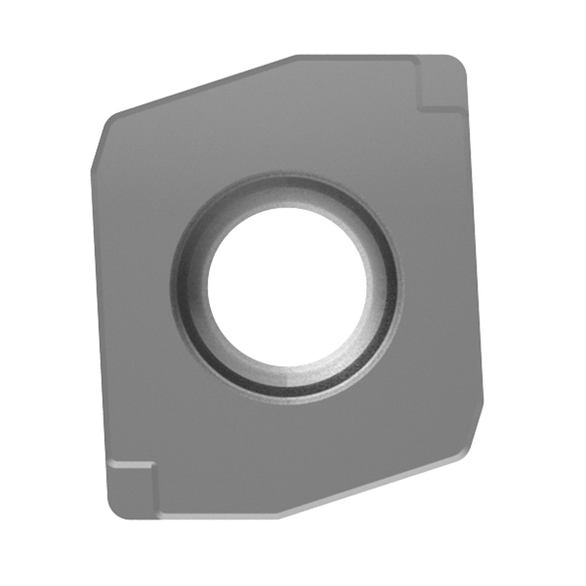

ALLIED 4TEX INSERT, 03 CAST IRON K Indexable Drill Insert
- Cutting Direction: Right Hand
- Application Type: Cast Iron
- Back Clearance: 7 deg
- Corner Radius: 0.012 in
- Finish/Coating: AM480
- Geometry: General Purpose
- Insert Shape: Proprietary
- Insert Thickness: 0.091 in
- Manufacturer Grade: K10
- Material: Carbide
- Maximum Diameter: 0.531 in
- Minimum Diameter: 0.472 in
- Series: 3
- Style: Center
The 4TEX™ indexable carbide drill provides increased penetration rates on light duty machines due to the single effective design. With twisted coolant outlets and increased core strength, the design provides improved hole size and finish. The 4-sided 4TEX™ inserts are designed to use 2 sides in the center pocket and 2 sides in the periphery pocket for an improved cost-per-hole. With insert geometries available for all ISO material classes and a robust body design, the 4TEX™ is suited for your difficult applications.
- Each insert has 2 inner cutting edges and 2 outer cutting edges
- Economical solution that increases tool life because of the rotation ability of the inserts
AME® 4TEX™ Indexable Drill Insert | 4-Cutting Edge General Purpose | Series: 03 | Center Insert | Proprietary | 2.3 mm Thickness | 4.8 mm Width | 5.9 mm Length | 0.3 mm Corner Radius | 2.4 mm Hole Dia | Right Hand | Carbide | AM480 Coated
Aerospace, Agriculture, Automotive, Firearms, General Machining, Heavy Equipment, Hydraulics, Marine, Oil and Gas, Renewable Energy, Tool, Mold and Die
