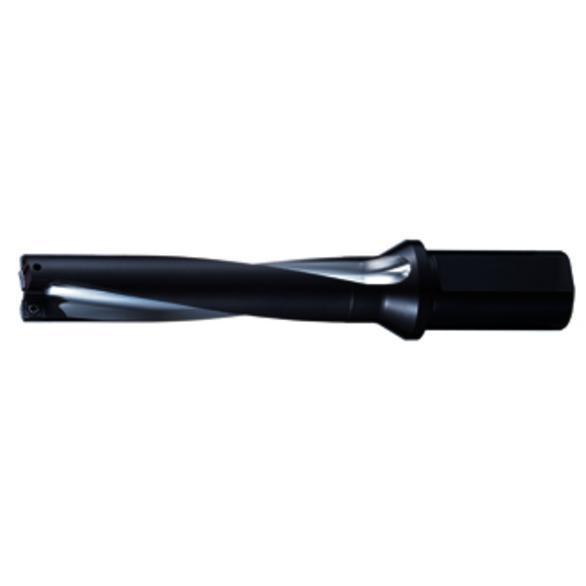

OSG 7802727 100.00 mm Max Drill Depth, 5xD, 0.7874 in Dia, Indexable Drill Insert
OSG 7802727
$876.83
/ EA
Out of Stock
- Shank Diameter - Metric: 25 mm
- Coolant Through: Yes
- Diameter - Thread Size: 5/8-11
- Drill Bit Size - Metric: 20 mm Dia
- Drive Type: Square
- Finish: Plain
- Grade: Grade A
- Head Diameter: 1.344 in
- Head Shape: Round
- Head Type: Round
- Insert Compatibility: XCMT06
- Insert Style: XCMT
- Length Under Head: 24 in
- Material: Steel
- Material Specifications: ASTM A307
- Maximum Drill Depth - Metric: 100 mm
- Neck Size: 0.344 in
- Neck Type: Square
- Overall Length: 24 in
- Overall Length - Metric: 174 mm
- Series: 78027
- Shank Length - Metric: 56 mm
- Shank Type: Flat
- System of Measurement: Imperial
- Thread Length: 6 in
- Thread Size: 5/8 in-11
- Thread Type: Full
- Type: Undersized
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert More economical and simplified insert management
- OSG's proprietary design for deeper drilling Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric Complete offering.
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
OSG 7802727 100.00 mm Max Drill Depth | 5xD | 0.7874 in Dia | P5D | Indexable Drill Insert
