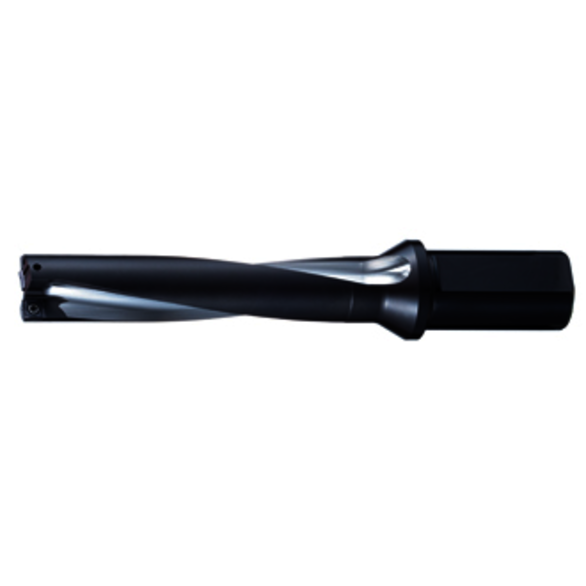

OSG 7802761 225.00 mm Max Drill Depth, 5xD, 1.7717 in Dia, Indexable Drill Insert
OSG 7802761
$1,263.03
/ EA
Out of Stock
- Shank Diameter - Metric: 40 mm
- Coolant Through: Yes
- Diameter - Thread Size: 7/16-14
- Drive Type: Square
- Finish: Plain
- Grade: Grade A
- Hardness: B70 to B100
- Head Diameter: 0.969 in
- Head Shape: Round
- Head Type: Round
- Insert Compatibility: XCMT13
- Insert Style: XCMT
- Length Under Head: 1-1/4 in
- Material: Steel
- Material Specifications: ASTM A307
- Maximum Drill Depth - Metric: 225 mm
- Neck Size: 1/4 in
- Neck Type: Square
- Overall Length - Fractional: 1-1/4 in
- Overall Length - Metric: 325 mm
- Series: 78027
- Shank Length - Metric: 70 mm
- Shank Type: Flat
- System of Measurement: Imperial
- Tensile Strength: 60000 psi
- Thread Size: 7/16 in-14
- Thread Type: Full
- Type: Fully Threaded
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert More economical and simplified insert management
- OSG's proprietary design for deeper drilling Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric Complete offering.
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
