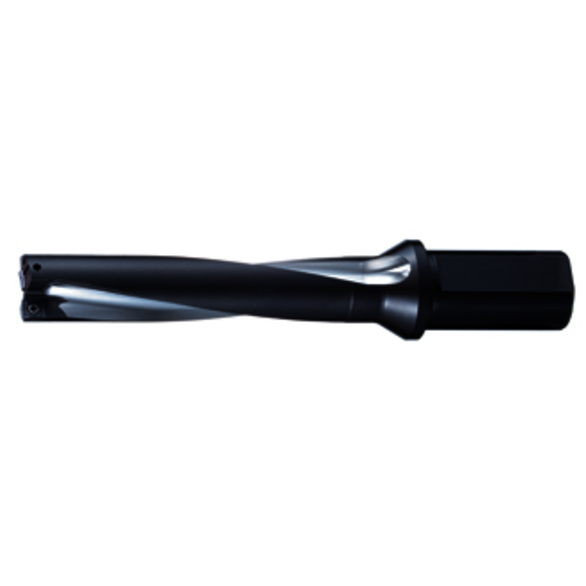

OSG 7802767 255.00 mm Max Drill Depth, 5xD, 2.0079 in Dia, Indexable Drill Insert
OSG 7802767
$1,389.43
/ EA
Out of Stock
- Shank Diameter - Metric: 40 mm
- Coolant Through: Yes
- Diameter - Thread Size: M36x4
- Drill Bit Size - Metric: 51 mm Dia
- Finish: Plain
- Grade: 10.9
- Hardness: 32 to 39 HRC
- Head Shape: Hex
- Head Size: 22.92 mm H
- Head Type: Hex
- Insert Compatibility: XCMT14
- Insert Style: XCMT
- Length Under Head: 150 mm
- Material: Steel
- Maximum Drill Depth - Metric: 255 mm
- Overall Length - Metric: 150 mm, 355 mm
- Series: 78027
- Shank Length - Metric: 70 mm
- Shank Size: 36 mm
- Shank Type: Flat
- System of Measurement: Metric
- Tensile Strength: 1040 N/sq-mm
- Thread Size: M36-4
- Thread Type: Partial
- Type: Partially Threaded
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert More economical and simplified insert management
- OSG's proprietary design for deeper drilling Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric Complete offering.
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
OSG 7802767 255.00 mm Max Drill Depth | 5xD | 2.0079 in Dia | P5D | Indexable Drill Insert
