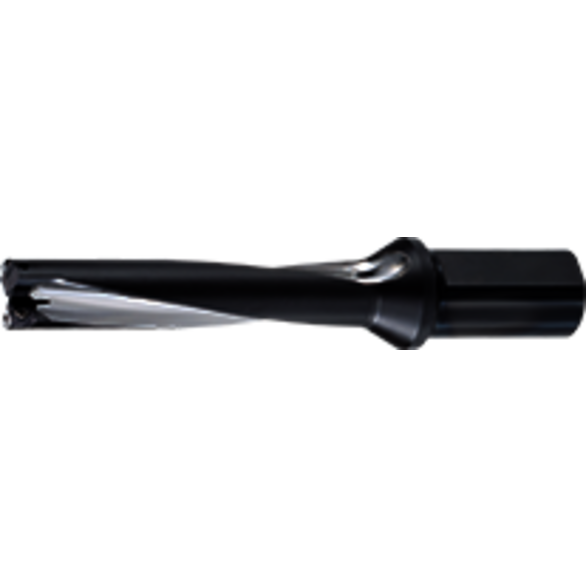

OSG 7803118 31.00 mm Max Drill Depth, 2xD, 0.6102 in Dia, Indexable Drill Insert
OSG 7803118
$590.26
/ EA
Out of Stock
- Shank Diameter - Metric: 20 mm
- Coolant Through: Yes
- Diameter - Thread Size: 1-5/8-5-1/2
- Finish: Hot Dipped Galvanized
- Grade: 2H
- Insert Compatibility: XCMT04
- Insert Style: XCMT
- Material: Steel
- Material Grade: 2H ASTM A194/SA194
- Maximum Drill Depth - Metric: 31 mm
- Overall Length - Metric: 96 mm
- Series: 78031
- Shank Length - Metric: 50 mm
- Shank Type: Flat
- System of Measurement: Imperial
- Thread Size: 1-5/8 in-5-1/2
- Type: Heavy
- Width Across Flats: 2/9/2016 in
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert More economical and simplified insert management
- OSG's proprietary design for deeper drilling Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric Complete offering.
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
OSG 7803118 31.00 mm Max Drill Depth | 2xD | 0.6102 in Dia | P2D | Indexable Drill Insert
