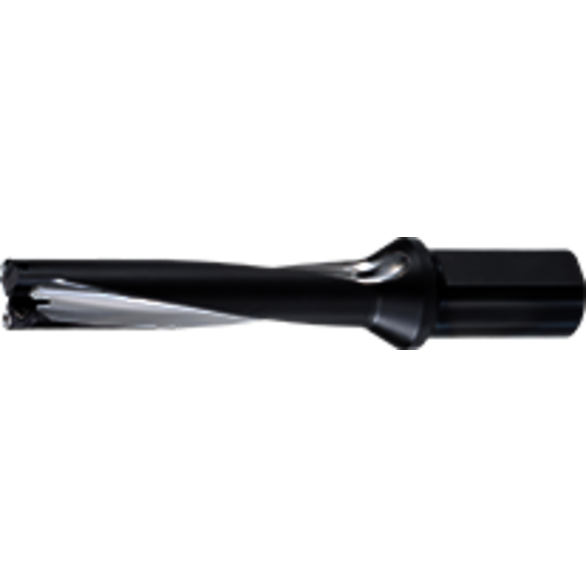

OSG 7803125 38.00 mm Max Drill Depth, 2xD, 0.7480 in Dia, Indexable Drill Insert
OSG 7803125
$566.42
/ EA
Out of Stock
- Shank Diameter - Metric: 25 mm
- Coolant Through: Yes
- Diameter - Thread Size: M12x1.75
- Drill Bit Size - Metric: 19 mm Dia
- Finish: Zinc
- Grade: Class 10.9
- Head Size: 7.76 mm H
- Head Type: Hex
- Insert Compatibility: XCMT06
- Insert Style: XCMT
- Length Under Head: 120 mm
- Material: Steel
- Maximum Drill Depth - Metric: 38 mm
- Overall Length - Metric: 112 mm, 120 mm
- Series: 78031
- Shank Length - Metric: 56 mm
- Shank Size: 12 mm
- Shank Type: Flat
- System of Measurement: Metric
- Thread Size: M12-1.75
- Thread Type: Partial
- Type: Partially Threaded
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert More economical and simplified insert management
- OSG's proprietary design for deeper drilling Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric Complete offering.
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
OSG 7803125 38.00 mm Max Drill Depth | 2xD | 0.7480 in Dia | P2D | Indexable Drill Insert
