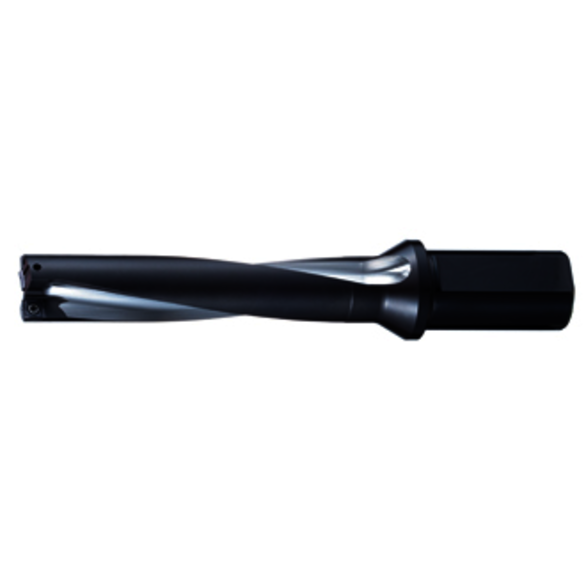

OSG 7803172 112.00 mm Max Drill Depth, 2xD, 2.2047 in Dia, Indexable Drill Insert
OSG 7803172
$924.48
/ EA
Out of Stock
- Shank Diameter - Metric: 40 mm
- Coolant Through: Yes
- Diameter - Thread Size: 7/8-14
- Finish: Zinc
- Grade: Grade 8
- Hardness: 33 to 39 HRC
- Head Size: 35/64 in H
- Head Type: Hex
- Insert Compatibility: XCMT14
- Insert Style: XCMT
- Length Under Head: 9 in
- Material: Steel
- Material Specifications: ASTM B633-Fe, Zn5 Type 2
- Maximum Drill Depth - Metric: 112 mm
- Overall Length: 9 in
- Overall Length - Metric: 212 mm
- Series: 78031
- Shank Length - Metric: 70 mm
- Shank Size: 7/8 in
- Shank Type: Flat
- System of Measurement: Imperial
- Tensile Strength: 150000 psi
- Thread Size: 7/8 in-14
- Thread Type: Partial
- Type: Partially Threaded
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker
- Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert
- More economical and simplified insert management
- OSG's proprietary design for deeper drilling
- Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric
- Complete offering
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
