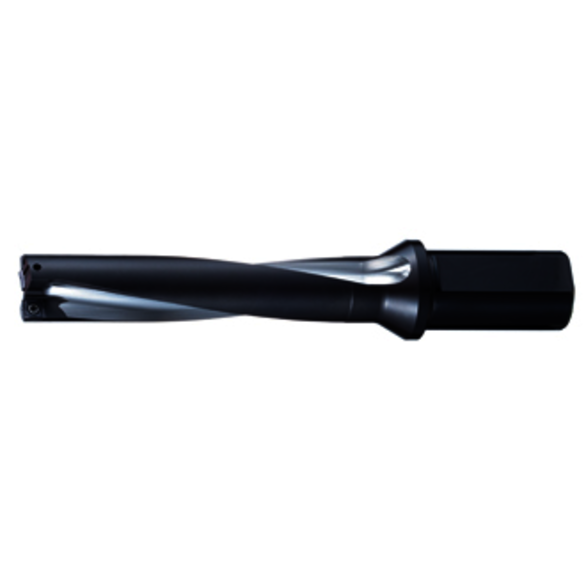

OSG 7803222 52-1/2 in Max Drill Depth, 3xD, 0.6890 in Dia, Indexable Drill Insert
OSG 7803222
$596.22
/ EA
Out of Stock
- Shank Diameter - Metric: 20 mm
- Coolant Through: Yes
- Diameter - Thread Size: 5/8-18
- Drill Bit Size - Decimal: 17.5 mm Dia
- Finish: Plain
- Grade: Grade 8
- Hardness: 33 to 39 HRC
- Head Size: 25/64 in H
- Head Type: Hex
- Insert Compatibility: XCMT05
- Insert Style: XCMT
- Length Under Head: 9-1/2 in
- Material: Steel
- Material Specifications: SAE J429
- Maximum Drill Depth - Metric: 52.5 mm
- Overall Length - Decimal: 120.5 mm
- Overall Length - Fractional: 9-1/2 in
- Series: 78032
- Shank Length - Metric: 50 mm
- Shank Size: 5/8 in
- Shank Type: Flat
- System of Measurement: Imperial
- Tensile Strength: 150000 psi
- Thread Size: 5/8 in-18
- Thread Type: Partial
- Type: Partially Threaded
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker
- Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert
- More economical and simplified insert management
- OSG's proprietary design for deeper drilling
- Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric
- Complete offering
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
OSG 7803222 52-1/2 in Max Drill Depth | 3xD | 0.6890 in Dia | P3D | Indexable Drill Insert
