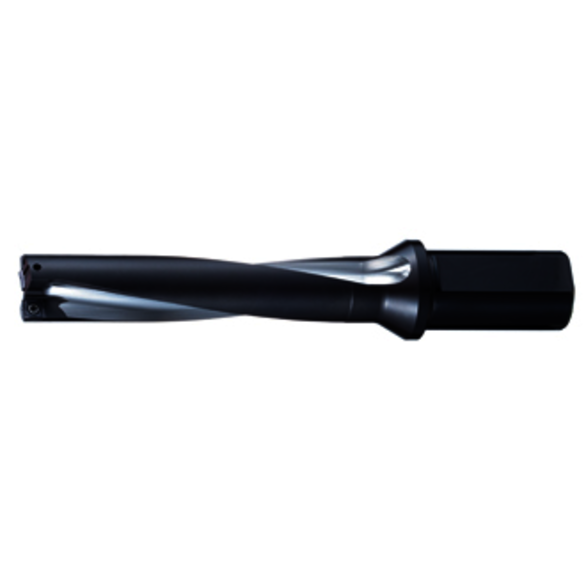

OSG 7803227 60.00 mm Max Drill Depth, 3xD, 0.7874 in Dia, Indexable Drill Insert
OSG 7803227
$546.99
/ EA
Out of Stock
- Shank Diameter - Metric: 25 mm
- Coolant Through: Yes
- Diameter - Thread Size: #12-14
- Drive Type: Hex Drive
- Finish: Plain
- Head Shape: Indented Hex Washer Head
- Head Type: Indented Hex/Washer
- Insert Compatibility: XCMT06
- Insert Style: XCMT
- Material: Steel
- Maximum Drill Depth - Metric: 60 mm
- Overall Length - Fractional: 1-1/2 in
- Overall Length - Metric: 134 mm
- Point Size: #2
- Point Type: Drill
- Series: 78032, Teks®
- Shank Length - Metric: 56 mm
- Shank Type: Flat
- System of Measurement: Imperial
- Thread Size: #12-14
- Type: Medium Duty
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker
- Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert
- More economical and simplified insert management
- OSG's proprietary design for deeper drilling
- Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric
- Complete offering
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
OSG 7803227 60.00 mm Max Drill Depth | 3xD | 0.7874 in Dia | P3D | Indexable Drill Insert
