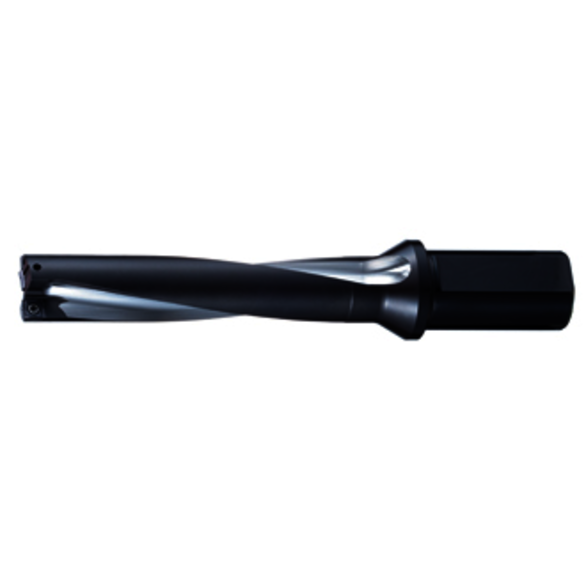

OSG 7803253 108.00 mm Max Drill Depth, 3xD, 1.4567 in Dia, Indexable Drill Insert
OSG 7803253
$797.49
/ EA
Out of Stock
- Shank Diameter - Metric: 40 mm
- Coolant Through: Yes
- Diameter - Thread Size: 01/08/2024
- Drill Bit Size - Metric: 37 mm Dia
- Finish: Plain
- Grade: 5
- Hardness: 25 to 34 HRC
- Head Size: 39/64 in H
- Head Type: Hex
- Insert Compatibility: XCMT10
- Insert Style: XCMT
- Length Under Head: 10 in
- Material: Medium Carbon Steel
- Maximum Drill Depth - Metric: 111 mm
- Overall Length - Metric: 204 mm
- Series: 78032
- Shank Length - Metric: 70 mm
- Shank Size: 1 in
- Shank Type: Flat
- System of Measurement: Imperial
- Tensile Strength: 120000 psi
- Thread Type: UNC
- Type: Partially Threaded
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker
- Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert
- More economical and simplified insert management
- OSG's proprietary design for deeper drilling
- Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric
- Complete offering
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
OSG 7803253 108.00 mm Max Drill Depth | 3xD | 1.4567 in Dia | P3D | Indexable Drill Insert
