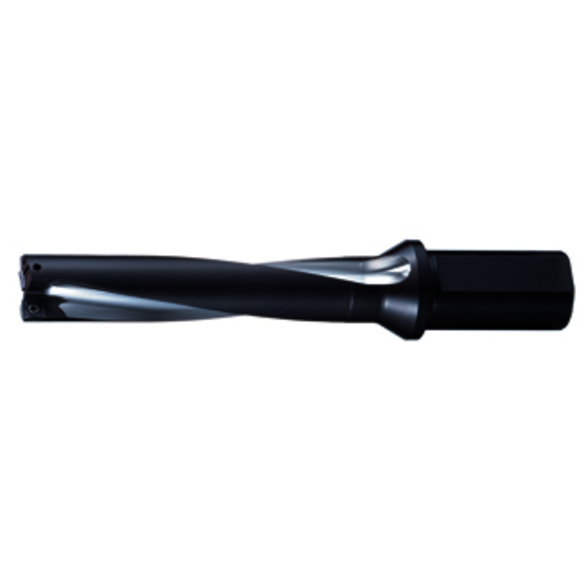

OSG 7803259 129.00 mm Max Drill Depth, 3xD, 1.6929 in Dia, Indexable Drill Insert
OSG 7803259
$787.96
/ EA
Out of Stock
- Shank Diameter - Metric: 40 mm
- Coolant Through: Yes
- Diameter - Thread Size: 1-1/8-7
- Finish: Zinc
- Grade: Grade 5
- Hardness: 19 to 30 HRC
- Head Size: 11/16 in H
- Head Type: Hex
- Insert Compatibility: XCMT12
- Insert Style: XCMT
- Length Under Head: 8 in
- Material: Steel
- Maximum Drill Depth - Metric: 129 mm
- Overall Length: 8 in
- Overall Length - Metric: 229 mm
- Series: 78032
- Shank Length - Metric: 70 mm
- Shank Type: Flat
- System of Measurement: Imperial
- Tensile Strength: 105000 psi
- Thread Size: 1-1/8 in-7
PHOENIX® PD is an indexable drill series designed for efficient, stable holemaking up to 5XD. It is an ideal solution for a wide variety of materials such as carbon and alloy steel, stainless steel, cast iron, and non-ferrous materials.
- Unique flute design with high precision finish and integrated chip breaker
- Excellent chip evacuation by breaking the cutting chips into small pieces
- The center and peripheral cutting edges use the same 4-corner insert
- More economical and simplified insert management
- OSG's proprietary design for deeper drilling
- Stable drilling depths up to 5XD; normally difficult to achieve with a double-flute, single-edge indexable drill
- Inch and Metric
- Complete offering
Application:For applications 2x to 5x drill diameter depthFor hole diameter 7/8" to 1 5/16"When higher efficiency (speed & feeds) are desired vs. other dual insert style drillsWhen through-the-spindle coolant is available
OSG 7803259 129.00 mm Max Drill Depth | 3xD | 1.6929 in Dia | P3D | Indexable Drill Insert
