Pramet 6920801 Drill Insert, Square, SCET Insert, 15.875 mm, 5.56 mm THK
PREDOR 6920801
$22.90
/ EA
Out of Stock

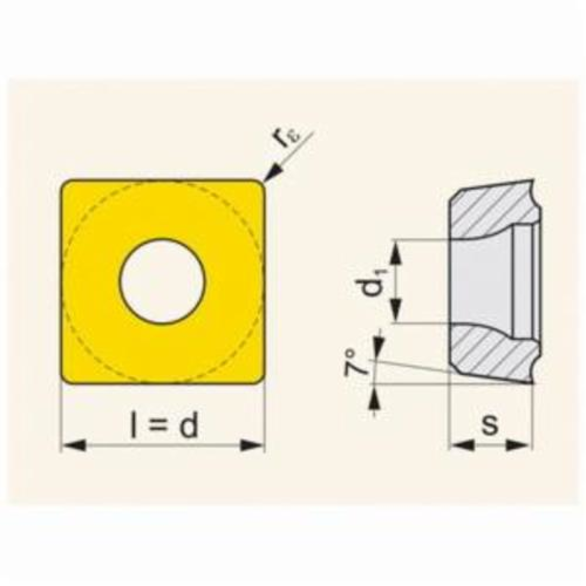

- Chipbreaker: SD
- Corner Radius: 0.8 mm
- Finish: CVD
- Hole Diameter - Decimal: 0.22047 in
- Hole Diameter - Metric: 5.6 mm
- Inscribed Circle Size: 15.875 mm
- Insert Style: SCET
- Length: 15.9 mm
- Material Grade: D8330
- Shape: Square
- Thickness: 5.56 mm
- Width: 15.9 mm
- To be mounted for peripheral cutting on indexable drills within a diameter range of 35 to 44 mm
- 7 deg clearance
- +/-0.025 mm inscribed circle tolerance
- +/-0.025 mm THK tolerance
- Gold color
- 0.09 to 0.22 mm/rev cutting feed
- SD chipbreaker - Positive geometry with stabilizer
- For low carbon and soft stainless steels
- Geometry designed for drilling in solid material
- Optimum contact of the chip with the face increases durability of the insert
- Low cutting forces
- Reliable formation of chip and good chip evacuation
- Quiet running, minimized vibration
- Suitable for high cutting speeds
- Optimized geometry with different grades for the outer and inner inserts allows better performance and greater insert reliability
Pramet Drill Insert| SCET Insert| Square| 15.875 mm Inscribed Circle| 5.56 mm THK| 15.9 mm W| 15.9 mm L| SD Chipbreaker| 0.8 mm Corner Radius| 5.6 mm Hole Dia| Manufacturer's Grade: D8330| SCET 120408-SD ISO Code| CVD Coated
