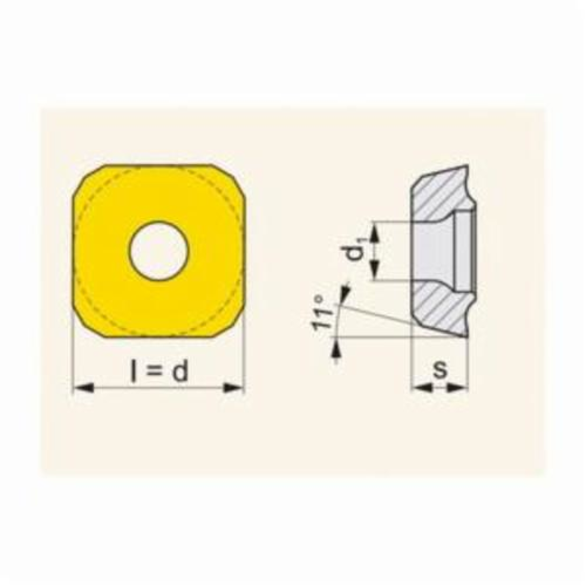

Pramet 6920810 Drill Insert, Square, XPET Insert, 12.7 mm, 3.97 mm THK
PREDOR 6920810
$22.90
/ EA
Out of Stock
- Hole Diameter - Decimal: 0.15354 in
- Hole Diameter - Metric: 3.9 mm
- Inscribed Circle Size: 12.7 mm
- Insert Style: XPET
- Length: 12.7 mm
- Shape: Square
- Thickness: 3.97 mm
- To be mounted for central cutting on indexable drills within a diameter range of 39 to 43 mm
- 11 deg clearance
- Positive geometry with stabilizer
- For low carbon and soft stainless steels
- Geometry designed for drilling in solid material
- Optimum contact of the chip with the face increases durability of the insert
- Low cutting forces
- Reliable formation of chip and good chip evacuation
- Quiet running, minimized vibration
- Suitable for high cutting speeds
- Optimized geometry with different grades for the outer and inner inserts allows better performance and greater insert reliability
- +/-0.025 mm inscribed circle tolerance
- +/-0.025 mm THK tolerance
- 0.09 to 0.22 mm/rev cutting feed
Pramet Drill Insert| XPET Insert| Square| 12.7 mm Inscribed Circle| 3.97 mm THK| 12.7 mm W| 12.7 mm L| 3.9 mm Hole Dia| XPET 12T3AP-SD ISO Code
