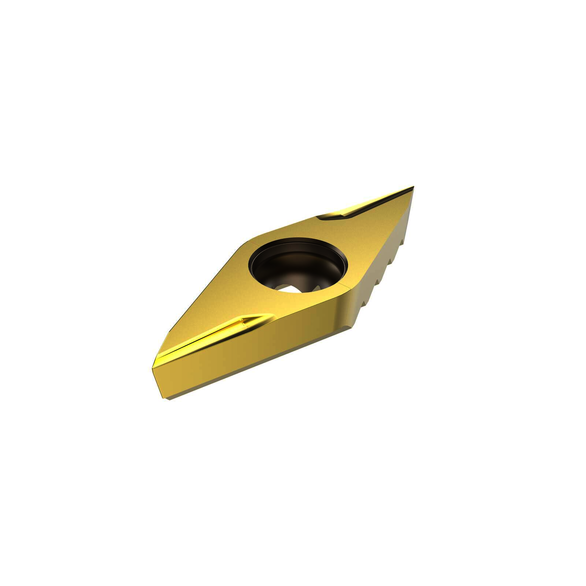

Seco 02510325 Perfomax™ Indexable Drill Insert, ANSI Code: SD200-C45, C45 Insert, SD200 Insert, 2.5 mm THK, 5.6 mm Inscribed Circle, Manufacturer's Grade: T400D

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low-friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications. Perfomax™ inserts are available in three grades - DP3000, DP2000 and T250D - featuring Seco's Duratomic® technology, which provides the grade with a thicker coating, makes it extremely resistant to heat and enables drilling at high speeds in steel and cast iron.

• Features strong square inserts with four cutting edges, high drill body stability, a low-friction coating, unique chip flute design and inserts with modern grades that use Duratomic® technology
• Tough center insert grade for maximum application security

Seco Indexable Drill Insert | Series: Perfomax | SD200 Insert | C45 Insert | 5.6 mm Inscribed Circle | 2.5 mm Thickness | 0.2 mm Corner Radius | 0.1142 in Diameter Hole | Manufacturer's Grade: T400D | 45 deg Included Angle | ANSI Code: SD200-C45 | Carbide | PVD-TiAlN+TiN Coated
