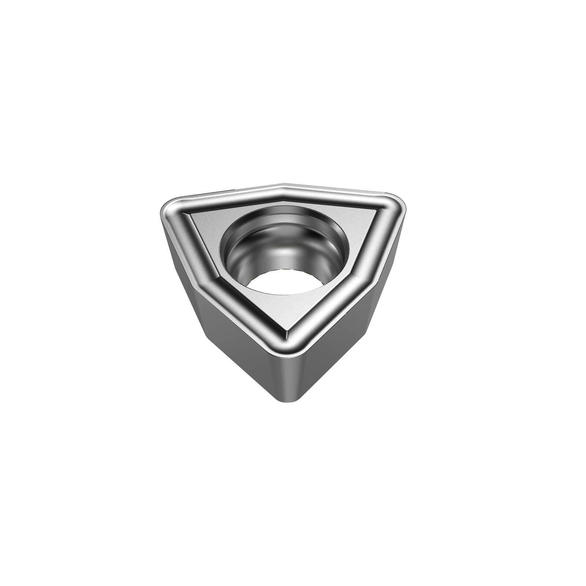

Seco 74015900 Perfomax™ Center Indexable Drill Insert, ANSI Code: WCMX06T308-86, Trigon Shape, 06T308 Insert, WCMX Insert, 4 mm THK, 9.5 mm Inscribed Circle, Manufacturer's Grade: HX

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low-friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications. Perfomax™ inserts are available in three grades - DP3000, DP2000 and T250D - featuring Seco's Duratomic® technology, which provides the grade with a thicker coating, makes it extremely resistant to heat and enables drilling at high speeds in steel and cast iron.

• Universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials

Seco Indexable Drill Insert | Center | Series: Perfomax | WCMX Insert | 06T308 Insert | Trigon Shape | 9.5 mm Inscribed Circle | 4 mm Thickness | 86 Chipbreaker | 0.8 mm Corner Radius | Manufacturer's Grade: HX | 80 deg Included Angle | ANSI Code: WCMX06T308-86 HX | Carbide | Uncoated
