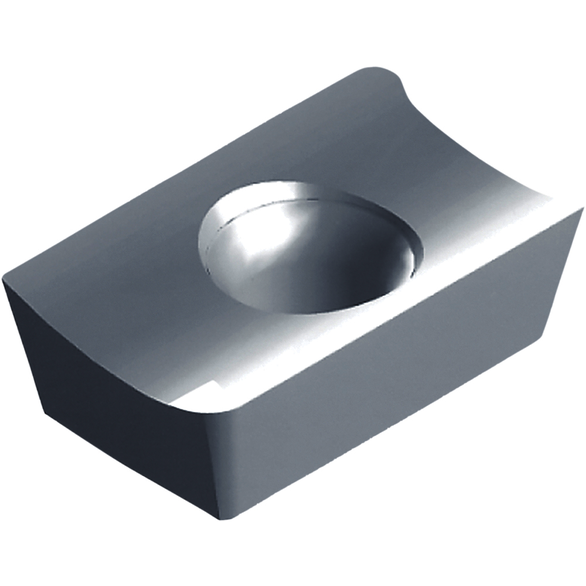

KYOCERA APET160416KW10 EM-AL/FM-AL/CM-AL Indexable Milling Insert With Hole, ANSI Code: APET160416KW10, APET Insert, #160416 Insert, Carbide, Manufacturer's Grade: KW10, Parallelogram Shape, Material Grade: N
KYOIND 8832914
$29.43
/ EA
Out of Stock
- Finish/Coating: Uncoated
- Insert Size: #160416
- Material: Carbide
- Material Grade: N
- Insert Style: APET
- Manufacturer's Grade: KW10
- Length: 0.6299 in
- Thickness: 0.188 in
- Coating: WC/Co
- Corner Radius - Fractional: 1/16 in
- Hand of Insert: Right
- Hole Diameter: 0.1575 in
- Inscribed Circle - Fractional: 3/8 in
- ISO Code: APET160416
- Lead Angle: 85 deg
- Material Application: Non-Ferrous Metals
- Rake: Positive
- Series: EM-AL/FM-AL/CM-AL
- Shape: Parallelogram
- Width - Fractional: 3/8 in
INSERT APET160416 KW10 CARBIDE MILLING
