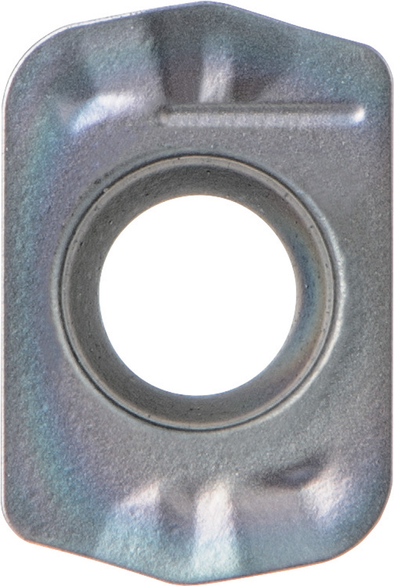

KYOCERA LPGT010210ERGMPR1535 MFH-Micro 2-Cutting Edge Indexable Milling Insert With Hole, ANSI Code: LPGT010210ERGMPR1535, LPGT Insert, #010210 Insert, Carbide, Manufacturer's Grade: PR1535, Rectangle Shape, Material Grade: M, S, P
KYOIND TLC04450
$13.75
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-MEGACOAT NANO
- Insert Size: #010210
- Material: Carbide
- Material Grade: M, S, P
- Insert Style: LPGT
- Manufacturer's Grade: PR1535
- Width: 0.165 in
- Length: 0.2465 in
- Thickness: 0.0862 in
- Chipbreaker: ER-GM
- Coating: MEGACOAT NANO
- Corner Radius: 0.0394 in
- Hand of Insert: Right
- Hole Diameter: 0.0827 in
- Inscribed Circle Size: 0.165 in
- ISO Code: LPGT010210ER-GM
- Lead Angle: 90 deg
- Material Application: Austenitic Stainless Steel, Precipitation Hardened Stainless Steel, Titanium Alloy, Carbon/Alloy Steel, Mold Steel, Martensitic Stainless Steel and Heat-Resistant Alloy
- Mounting Hole Diameter - Decimal: 0.083 in
- Mounting Hole Diameter - Metric: 2.108 mm
- Rake: Positive
- Series: MFH-Micro
- Shape: Rectangle
- Type: 2-Cutting Edge
- Weight: 0.079 lbs
Additional Information:
Proprietary insert for the Kyocera MFH-Micro High-Feed Milling Cutter
Proprietary insert for the Kyocera MFH-Micro High-Feed Milling Cutter
