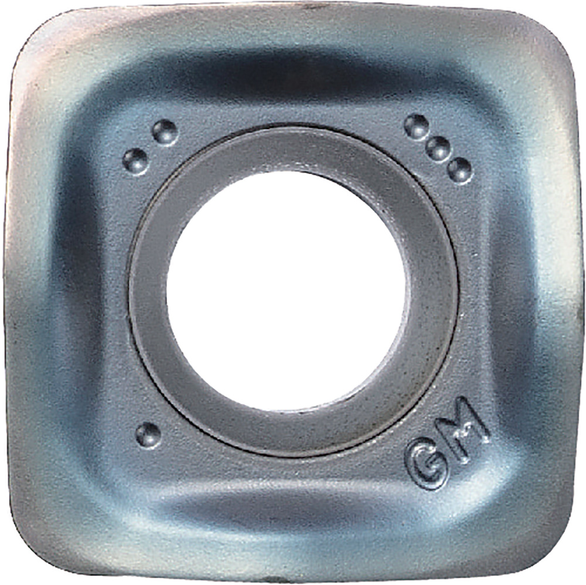

KYOCERA SOMT140520ERGMCA6535 Single Sided Milling Insert, ANSI Code: SOMT140520ERGM CA6535, SOMT Insert, 140520 Insert, Carbide, Manufacturer's Grade: CA6535, Squared Shape, Material Grade: M, S
KYOIND TMA05627
$13.23
/ EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3+TiN Coated
- Insert Size: 140520
- Material: Carbide
- Material Grade: M, S
- Insert Style: SOMT
- Manufacturer's Grade: CA6535
- Width: 0.557 in
- Length: 0.557 in
- Inscribed Circle: 0.557 in
- Thickness: 0.219 in
- Chipbreaker: GM
- Coating: TiCN/Al2O3/TiN
- Corner Radius: 0.079 in
- Hand of Insert: Right
- Hole Diameter: 0.228 in
- Inscribed Circle Size: 0.5567 in
- ISO Code: SOMT140520ER-GM CA6535
- Lead Angle: 90 deg
- Material Application: Martensitic Stainless Steel and Heat-Resistant Alloy
- Rake: Positive
- Shape: Squared
- Type: Single Sided
- Weight: 0.184 lbs
Additional Information:
Proprietary insert for the Kyocera MFH-Raptor High-Feed Milling Cutter
Proprietary insert for the Kyocera MFH-Raptor High-Feed Milling Cutter
