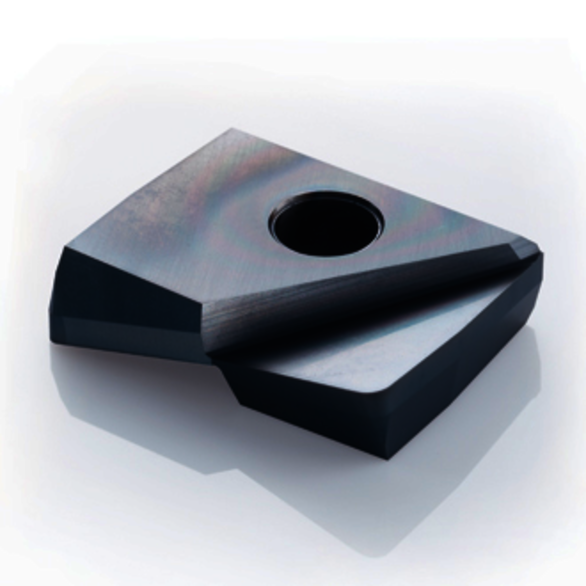

OSG 52201026 Insert Style PFR, Insert Size 1250, Material Carbide, Milling Insert
OSG 52201026
$221.50
/ EA
Out of Stock
- Insert Size: 1250
- Material: Carbide
- Material Grade: P
- Insert Style: PFR
- Manufacturer's Grade: XP3225
- Width: 1-1/4 in
- Length: 23.50 mm
- Thickness: 7.00 mm
- Chipbreaker: ST
- Corner Radius: 0.0600 in
- Finish: Cr Coated
- Hand of Insert: Right
- Length - Fractional: 1-1/4 in
- Material Application: Cast Iron, Stainless Steel and Steel
- Series: 78PFR
- Shape: Parallelogram
- Thickness - Metric: 7 mm
- Width - Metric: 23.5
PHOENIX® PFR is a series of high precision indexable finish radius end mills for superior surface finish and tool life.
- Very high insert diameter (+0 / -20µm) and corner radius precision (±8µm)
- Superior milling surface finish
- Spiral cutting edge
- Excellent cutting edge strength and sharpness
- Steel and Carbide tool shanks
- Reduces chatter and provides favorable milling surface when machining at short or long overhangs
- End mill style, Inch and Metric
- Complete offering
Standard/Approvals: PFR1250R060A-ST, XP3225
Application: Ideal for 2-D and 3-D finishing operations where precision (PFR has 8 micron radius tolerance) and surface finish are critical.For hard milling in hardened steels like D2, H13 and 420 Stainless Steel.
OSG 52201026 Insert Style PFR | Insert Size 1250 | Material Carbide | XP3225 | Cr | Milling Insert
