OSG 7814030 Insert Style RPHW, Insert Size 10T3M0, Material Carbide, Milling Insert
OSG 7814030
$18.57
/ EA
Out of Stock
- Insert Size: 10T3
- Material: Carbide
- Material Grade: P
- Insert Style: RPHW
- Manufacturer's Grade: XP3035
- Thickness: 3.97 mm
- Finish: TiAlN + TiN Coated
- Hand of Insert: Neutral
- Lead Angle: 11
- Material Application: Cast Iron, Stainless Steel and Steel
- Series: 78PRC
- Shape: Round
- Thickness - Decimal: 3.97 mm
- Width - Metric: 10

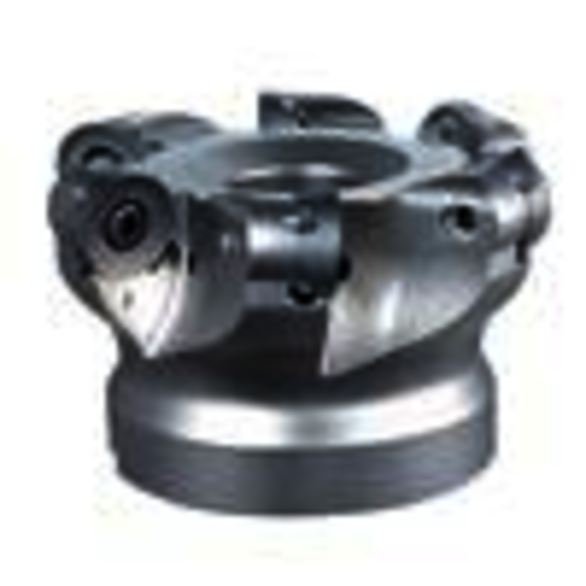

PHOENIX® PRC is a highly versatile series of button insert end mills and facemills for contour milling applications.
- Insert rotation notch
- Large body relief
- Secure insert clamping with screws and wide chip pockets
- End mill and face mill styles, Inch and Metric
Application:Ideal for Mold & Die work where 3-D machining is prevalent.Fan and turbine blades made from Inconel 718 and other Heat Resistant Supper Alloys (HRSA).Roughing applications.
OSG 7814030 Insert Style RPHW | Insert Size 10T3M0 | Material Carbide | TiALN + TiN | Milling Insert
