OSG 7814080 Insert Style ZDKT, Insert Size 150530, Material Carbide, Milling Insert
OSG 7814080
$21.92
/ EA
Out of Stock
- Insert Size: 150530
- Material: Carbide
- Material Grade: P
- Insert Style: ZDKT
- Manufacturer's Grade: XP3035
- Width: 7/32 in
- Length: 5/64 in
- Thickness: 7/32 in
- Chipbreaker: GM
- Corner Radius: 3.00 mm
- Finish: TiAlN + TiN Coated
- Lead Angle: 15
- Length - Metric: 14 mm
- Material Application: Cast Iron, Stainless Steel and Steel
- Series: 78PSE
- Shape: Parallelogram
- Thickness - Decimal: 5.56 mm
- Width - Metric: 9.3

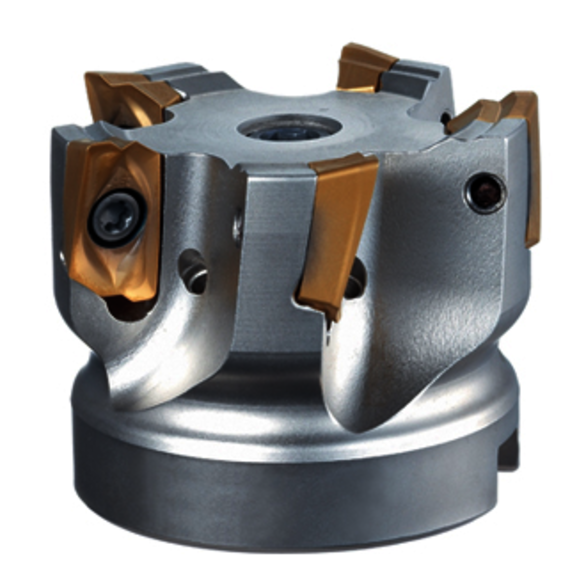

PHOENIX® PSE is a versatile series of 90° end mills and facemills, ideal for a wide variety of rough and finish milling applications including facing, side milling, slotting, ramping and helical milling.
- Side cutting edge "margin"
- Bottom notch
- Insert variety
- End mill and face mill styles, Inch and Metri
Application:Any applications where ramping or helical milling is needed or could improve efficiencyWhen high quality surface finish is desired in side milling operation.When performing any shopulder milling operation
OSG 7814080 Insert Style ZDKT | Insert Size 150530 | Material Carbide | TiALN + TiN | Milling Insert
