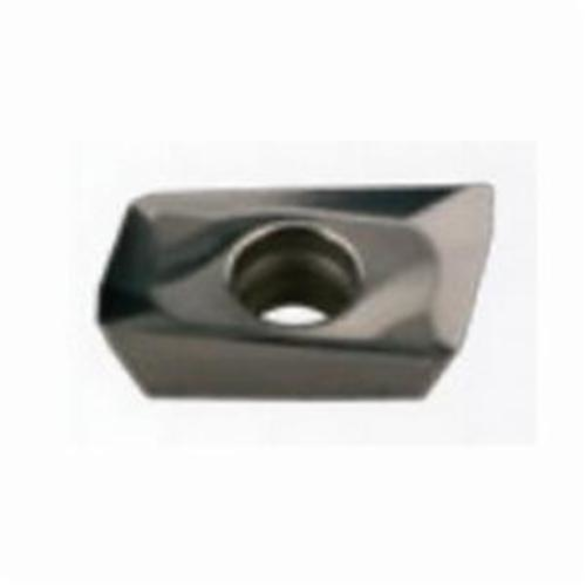

Pramet 6753138 Positive Milling Insert, 85 deg Parallelogram, ADEX Insert, HF7
PREDOR 6753138
$22.24
/ EA
Out of Stock
- Material Grade: HF7, H, K, M, N, S
- Insert Style: ADEX
- Length: 11 mm
- Thickness: 3.5 mm
- Chipbreaker: FA
- Corner Radius: 0.8 mm
- Finish: PCD
- Hole Diameter - Decimal: 0.11417 in
- Hole Diameter - Metric: 2.9 mm
- Inscribed Circle Size: 6.53 mm
- Lead Angle: 15 deg
- Rake: 27 deg Positive
- Shape: 85 deg Parallelogram
- Type: Positive
- HF7 - Sub micron material without cubic carbides (type H) and with a low cobalt content
- Very versatile in terms of machined materials
- Small to medium chip cross sections
- Suited to stable machining conditions
- +/-0.025 mm inscribed circle tolerance
- +/-0.025 mm THK tolerance
- Suitable for milling with SAD11E and S90AD11E square shoulder milling cutters and J-SAD11E and T-S90AD11E helical end milling cutters
- F - Sharp cutting edge
- Silver color
- 9 mm maximum depth of cut
- 0.03 to 0.3 mm/rev cutting feed
- High positive geometry with a sharp cutting edge
- Polished insert face to reduce sticking of the machined material
Pramet Milling Insert| Positive| ADEX Insert| 85 deg Parallelogram| 6.53 mm Inscribed Circle| 3.5 mm THK| 11 mm L| FA Chipbreaker| 0.8 mm Corner Radius| 27 deg Positive Rake| 15 deg Lead Angle| 2.9 mm Hole Dia| Manufacturer's Grade: HF7| ADEX -(2.5)2FR-FA| ADEX 11T308FR-FA ISO Code| Right Hand| PCD Coated| Material Grade: H| K| M| N| S
