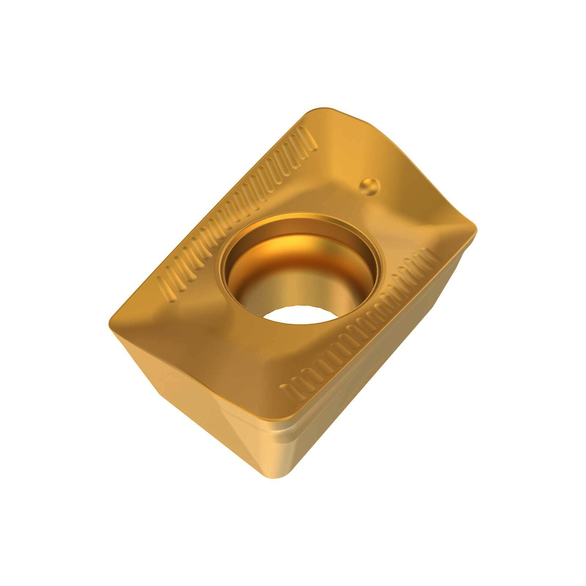

Seco 00054991 Indexable Milling Insert, ANSI Code: XOMX120412TR-ME08 F40M, XOMX Insert, 120412 Insert, Carbide, Manufacturer's Grade: F40M, Parallelogram Shape, Material Grade: C5
SECO 00054991
$25.31
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Size: 120412
- Material: Carbide
- Material Grade: C5
- Insert Style: XOMX
- Manufacturer's Grade: F40M
- Width: 0.322 in
- Length: 0.449 - 0.479 in
- Thickness: 5.1 in
- Chipbreaker: ME08
- Clearance Angle: 0 deg
- Corner Radius: 0.047 in
- Corner Radius - Metric: 1.2 mm
- Finish: PVD
- Hand of Insert: Right
- Rake: Positive
- Shape: Parallelogram
- Type: Square Shoulder Slot
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
Seco Indexable Milling Insert | XOMX Insert | 120412 Insert | Parallelogram Shape | 5.1 mm Thickness | 0.322 in Width | 0.479 in Length | ME08 Chipbreaker | 1.2 mm Corner Radius | Positive Rake | Manufacturer's Grade: F40M | ANSI Code: XOMX120412TR-ME08 F40M | ISO Code: XOMX120412TR-ME08 F40M | Right Hand of Insert | Carbide | PVD-TiAlN+TiN Coated | Material Grade: C5 | Cast Iron | Plastics and Non-Ferrous Metals Material Application
