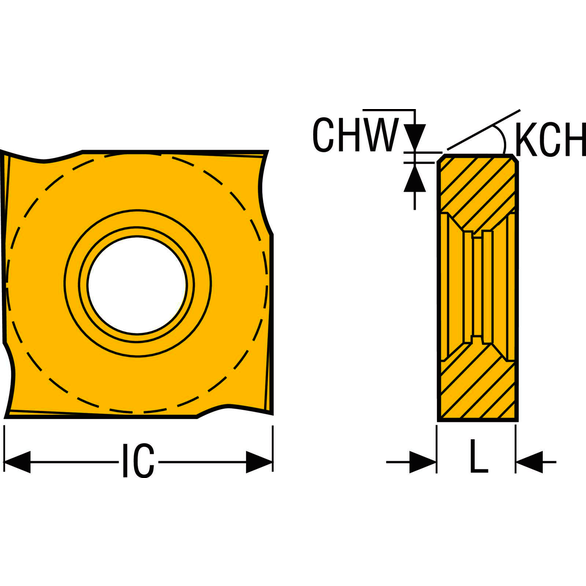

Seco 00083748 Milling Insert, ANSI Code: 335.19-12045-M08 F40M, 335.19 Insert, 12045 Insert, Carbide, Manufacturer's Grade: F40M, Squared Shape, Material Grade: C5
SECO 00083748
$50.42
/ EA
Out of Stock
- Finish/Coating: PVD-TiAlN/NbN Coated
- Insert Size: 12045
- Material: Carbide
- Material Grade: C5
- Insert Style: 335.19
- Manufacturer's Grade: F40M
- Width: 12.700 mm
- Length: 12.700 mm
- Inscribed Circle: 12.700 mm
- Thickness: 4.5 in
- ANSI Number: 335.19-12045-M08 F40M
- Chipbreaker: M08
- Coating: TiAlN/NbN
- Coating Process: PVD
- Hand of Insert: Ambidextrous
- Inscribed Circle - Metric: 12.7 mm
- Insert Hand: Neutral
- ISO Number: 335.19-12045-M08 F40M
- Manufacturer Grade: F40M
- Part Number: 83748
- Primary Workpiece Material: Steel; Stainless Steel; Non Ferrous Metal; Super Alloy and Titanium; Hard Material
- Rake: Positive
- Relief Angle: 0 Degree
- Shape: Squared
- Width - Metric: 12.7 mm
Standard/Approvals:335.19-12045-M08 F40M
Seco Tools 83748 335.19 | 12045 | Carbide | F40M | TiAlN/NbN | Milling Insert
