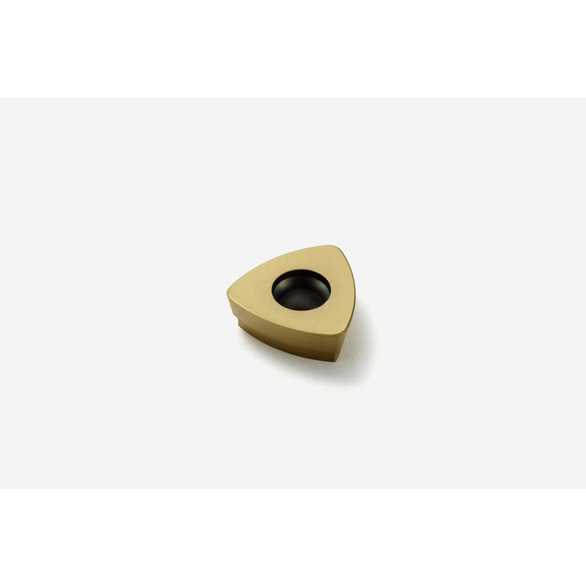

Seco 02417601 Indexable Milling Insert, ANSI Code: 218.19-125T-T3-MD10 F25M, 218.19 Insert, 125 Insert, Carbide, Manufacturer's Grade: F25M, Trigon Shape, Material Grade: C2, C5
SECO 02417601
$31.86
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD Coated
- Insert Size: 125
- Material: Carbide
- Material Grade: C2, C5
- Insert Style: 218.19
- Manufacturer's Grade: F25M
- Thickness: 3.97 in
- Chipbreaker: MD10
- Corner Radius: 0.8 in
- Finish: PVD
- Hand of Insert: Right/Left
- Inscribed Circle - Metric: 8.9 mm
- Inscribed Circle Size: 8.9 mm
- Rake: Neutral
- Shape: Trigon
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
Seco Indexable Milling Insert | 218.19 Insert | 125 Insert | Trigon Shape | 8.9 mm Inscribed Circle | 3.97 mm Thickness | MD10 Chipbreaker | 0.8 mm Corner Radius | Neutral Rake | Manufacturer's Grade: F25M | ANSI Code: 218.19-125T-T3-MD10 F25M | Left/Right Hand of Insert | Carbide | PVD Coated | Material Grade: C2 | C5 | Cast Iron | Non-Ferrous Metals | Plastics and Tough-to-Machine Materials Material Application
