Seco 02505883 Milling Insert, ANSI Code: CCMX120412T-MD11 F40M, CCMX Insert, 120412 Insert, Carbide, Manufacturer's Grade: F40M, Diamond Shape, Material Grade: C5
SECO 02505883
$32.34
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Size: 120412
- Material: Carbide
- Material Grade: C5
- Insert Style: CCMX
- Manufacturer's Grade: F40M

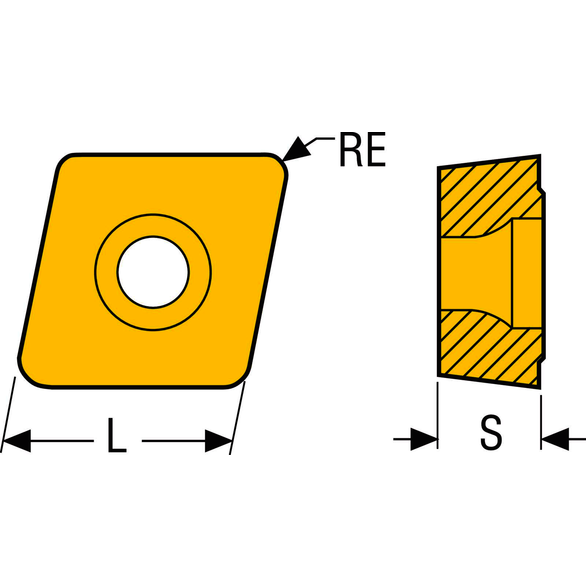

- Length: 12.700 mm
- Inscribed Circle: 12.700 mm
- Thickness: 4.76 in
- ANSI Number: CCMX120412T-MD11 F40M
- Chipbreaker: MD11
- Coating: TiAlN+TiN
- Coating Process: PVD
- Corner Radius: 4.760 mm
- Corner Radius - Metric: 1.2 mm
- Hand of Insert: Right
- Included Angle: 80 Degree
- Inscribed Circle - Metric: 12.7 mm
- Insert Hand: Right Hand
- ISO Number: CCMX120412T-MD11 F40M
- Manufacturer Grade: F40M
- Part Number: 23946
- Primary Workpiece Material: Steel; Stainless Steel; Super Alloy and Titanium
- Relief Angle: 7 Degree
- Shape: Diamond
Standard/Approvals:CCMX120412T-MD11 F40M
Seco Tools 23946 CCMX | 120412 | Carbide | F40M | TiAlN+TiN | Milling Insert
