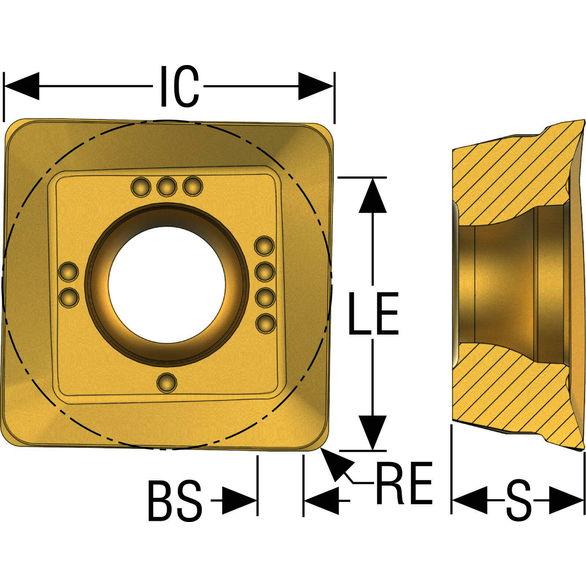

Seco 02566302 Milling Insert, ANSI Code: SONX120508TR-M12 MK1500, SONX Insert, 120508 Insert, Carbide, Manufacturer's Grade: MK1500, Squared Shape
SECO 02566302
$30.63
/ EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Size: 120508
- Material: Carbide
- Insert Style: SONX
- Manufacturer's Grade: MK1500
- Width: 0.5000 in
- Inscribed Circle: 0.5000 in
- Thickness: 5.56 in
- Chipbreaker: M12
- Coating: TiCN/Al2O3
- Coating Process: CVD
- Corner Radius: 0.8 in
- Hand of Insert: Right
- Hole Diameter - Decimal: 0.0310 in
- Included Angle: 90 Degree
- Inscribed Circle - Metric: 12.7 mm
- Insert Hand: Right Hand
- ISO Number: SONX120508TR-M12
- Length of Cut: 11.000 mm
- Manufacturer Grade: MK1500
- Part Number: 31607
- Primary Workpiece Material: Cast Iron
- Rake: Positive
- Relief Angle: 15 Degree
- Shape: Squared
- Width - Metric: 12.7 mm
Standard/Approvals:SONX120508TR-M12
Seco Tools 31607 SONX | 120508 | Carbide | MK1500 | TiCN/Al2O3 | Milling Insert
