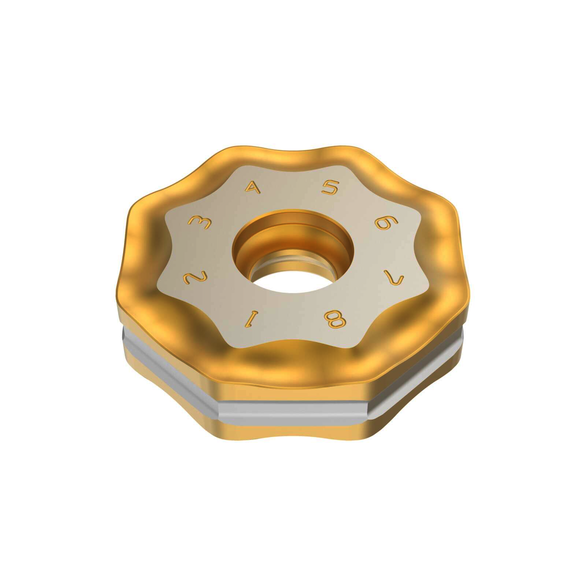

Seco 02688961 Indexable Milling Insert, ANSI Code: ONMU090520ANTN-M14 F40M, ONMU Insert, 090520 Insert, Carbide, Manufacturer's Grade: F40M, Octagon Shape, Material Grade: C5
SECO 02688961
$47.36
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-TiAlN/NbN Coated
- Insert Size: 090520
- Material: Carbide
- Material Grade: C5
- Insert Style: ONMU
- Manufacturer's Grade: F40M
- Length: 0.866 in
- Thickness: 5.8 in
- Chipbreaker: M14
- Finish: PVD
- Hand of Insert: Ambidextrous
- Inscribed Circle - Metric: 22 mm
- Shape: Octagon
- Width - Metric: 22 mm
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
Seco Indexable Milling Insert | ONMU Insert | 090520 Insert | Octagon Shape | 22 mm Inscribed Circle | 5.8 mm Thickness | 22 mm Width | 0.866 in Length | M14 Chipbreaker | Manufacturer's Grade: F40M | ANSI Code: ONMU090520ANTN-M14 F40M | ISO Code: ONMU090520ANTN-M14 F40M | Neutral Hand of Insert | Carbide | PVD-TiAlN/NbN Coated | Material Grade: C5 | Cast Iron | Non-Ferrous Metals | Plastics and Tough-to-Machine Materials Material Application
