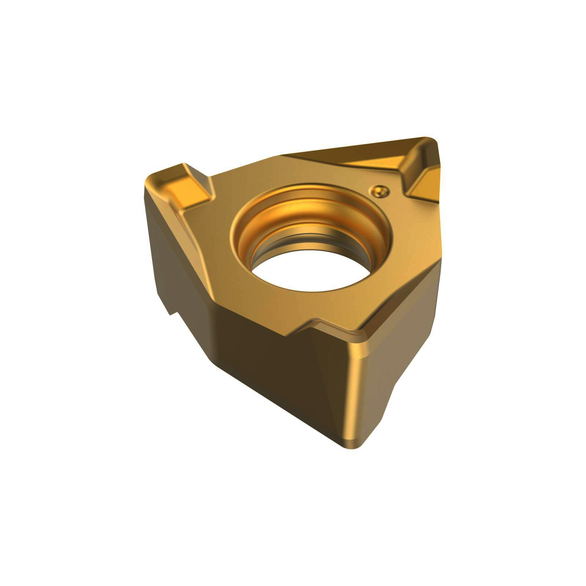

Seco 02849150 Indexable Milling Insert, ANSI Code: XNEX040308R-M06 F40M, XNEX Insert, 040308 Insert, Carbide, Manufacturer's Grade: F40M, Trigon Shape
SECO 02849150
$33.87
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-TiAlN/NbN Coated
- Insert Size: 40308
- Material: Carbide
- Material Grade: F40M
- Insert Style: XNEX
- Manufacturer's Grade: F40M
- Width: 0.264 in
- Thickness: 3.3 in
- Chipbreaker: M06
- Corner Radius: 0.8 in
- Finish: PVD
- Hand of Insert: Right
- Inscribed Circle - Metric: 6.7 mm
- Inscribed Circle Size: 6.7 mm
- Rake: Positive
- Shape: Trigon
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
Seco Indexable Milling Insert | XNEX Insert | 040308 Insert | Trigon Shape | 6.7 mm Inscribed Circle | 3.3 mm Thickness | 0.264 in Width | M06 Chipbreaker | 0.8 mm Corner Radius | Positive Rake | Manufacturer's Grade: F40M | ANSI Code: XNEX040308R-M06 F40M | Right Hand of Insert | Carbide | PVD-TiAlN/NbN Coated | Cast Iron | Non-Ferrous Metals | Plastics and Tough-to-Machine Materials Material Application
