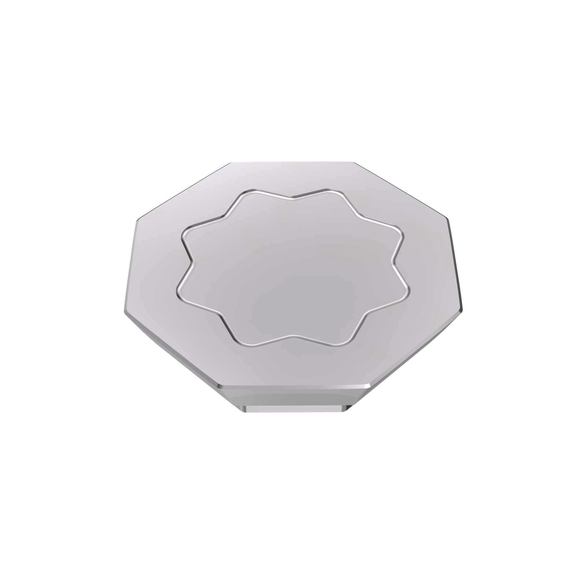

Seco 03272995 OFEN Threaded Mill Insert, OFEN Insert, 070405 Insert, Carbide, Manufacturer's Grade: MP1501, Octagon Shape
SECO 03272995
$44.77
/ Order multiples of 10 EA
Out of Stock
- Insert Size: 70405
- Material: Carbide
- Insert Style: OFEN
- Manufacturer's Grade: MP1501
- Length: 0.7071 in
- Inscribed Circle: 0.7071 in
- Thickness: 0.185 in
- Chipbreaker: D18
- Coating: TiCN/Al2O3
- Coating Process: CVD
- Corner Radius: 0.5 in
- Included Angle: 135 Degree
- Inscribed Circle - Metric: 17.96 mm
- ISO Number: OFEN070405TN-D18
- Length of Cut: 7.000 mm
- Manufacturer Grade: MP1501
- Part Number: 03272995
- Primary Workpiece Material: Universal
- Rake: Positive
- Relief Angle: 26 Degree
- Shape: Octagon
Standard/Approvals:OFEN070405TN-D18
Seco Tools 03272995 OFEN | 070405 | Carbide | MP1501 | TiCN/Al2O3 | Milling Insert
