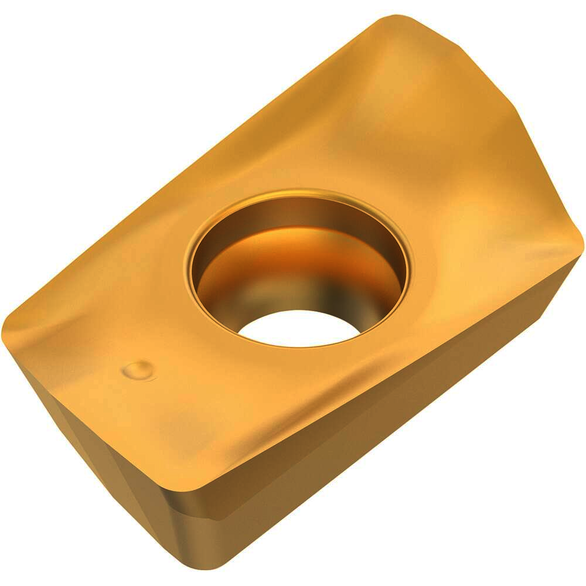

Seco Turbo 16 10000045 Square Shoulder Milling Insert, ANSI Code: XOEX160508R-M09, XOEX Insert, 160508 Insert, Carbide, Manufacturer's Grade: MP3000, Parallelogram Shape
SECO 10000045
$43.50
/ EA
Out of Stock
- Finish/Coating: PVD Coated
- Insert Size: 160508
- Material: Carbide
- Manufacturer's Grade: MP3000
- Width: 0.402 in
- Thickness: 0.232 in
- Chipbreaker: M09
- Corner Radius: 0.031 in
- Hand of Insert: Right
- Lead Angle: 14 deg
- Shape: Parallelogram
- Solid carbide provides better rigidity than high speed steel, It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN, It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys
- Solid carbide is extremely heat resistant and used for high speed applications, It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials
- Solid carbide provides better rigidity than high speed steel, It is extremely heat-resistant and used for high-speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
SECO 10000045 | Seco Milling Insert | XOEX Insert Style | 160508 Insert | Carbide | TiAlN Coating | 0.031 in Corner Radius
