Tungaloy

Square shoulder mills with screw clamped SWMT/SWGT13 inserts.

TUNGAL 6848586
$1,233.09 / EA
Out of Stock

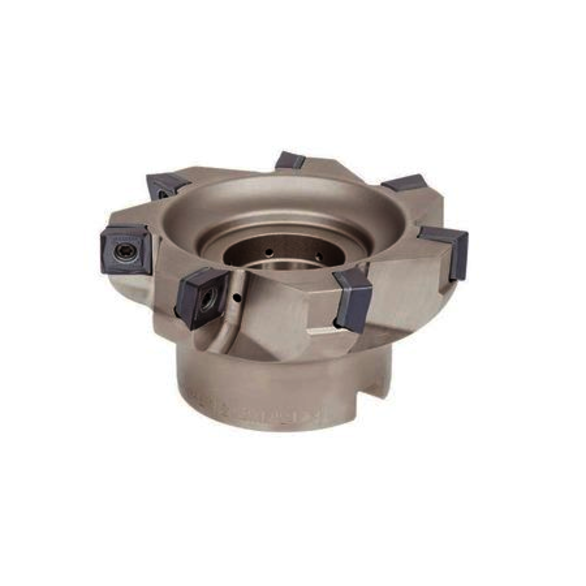

Image for TUNGAL 6848586
  • Material: Steel
  • Arbor Hole Diameter: 1.0000 in
  • Arbor Hole Diameter - Decimal: 1.0000 in
  • Connection Diameter: 1 in
  • Cutter Style: TPW
  • Cutting Diameter: 3 in
  • Cutting Diameter - Decimal: 3.0000 in
  • Cutting Direction: Right Hand
  • Functional Length: 1.969 in
  • Insert Compatibility: SWMT/SWGT13
  • Insert Holding Method: Screw
  • Keyway Width: 0.3740 in
  • Maximum Cutting Diameter: 3 in
  • Maximum Depth of Cut: 0.394 in
  • Number of Cutter Inserts: 6
  • Number Of Cutting Edges: 6
  • Overall Height: 1.9690 in
  • Overall Width: 1.969 in
  • Part Number: 6848586
  • Series: TPW
Standards:

ISO

Insert Number:

SWMT1304PD

Additional Information:

Wrench IP-15D, Lock Screw CSPB-3.5, Seat FSSP1102, Seat Screw DTS5-3.5SS, Wrench For Nest P-3.5, Coolant Screw C0.500X1.375H

Notes:

Screw Clamped ISO Mill Cutter
