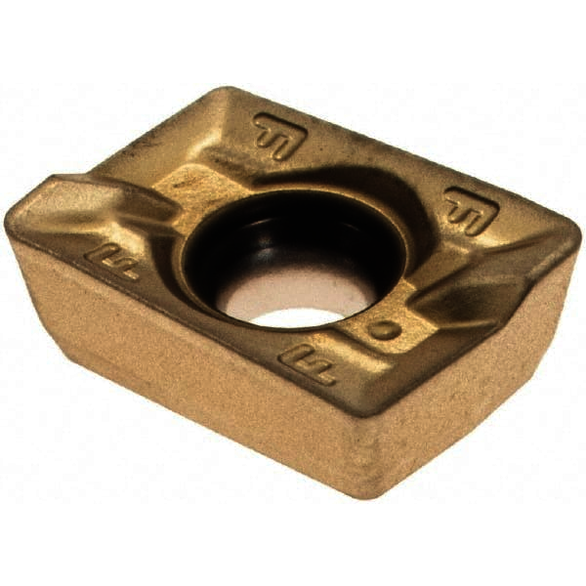

Walter 5026008 APMT090308R-F56 WQM35 Milling Insert PVD
WALTER 5026008
$18.76
/ EA
Out of Stock
- Insert Size: 090308
- Material: Solid Carbide
- Material Grade: WQM35
- Insert Style: APMT
- Width: 6.750 mm
- Length: 9.520 mm
- Inscribed Circle: 6.750 mm
- Thickness: 3.180 mm
- ANSI Number: APMT090308R-F56 WQM35
- Chipbreaker: F56
- Clearance Angle: 11 deg
- Coating Process: PVD
- Corner Facet Length: 0.047 in
- Corner Radius: 0.800 mm
- Cutting Edge Length: 0.375 in
- Finish: PVD
- Hole Diameter - Metric: 2.800 mm
- Included Angle: 85 Degree
- Inscribed Circle Size: 0.266 in
- Insert Hand: Right Hand
- ISO Number: APMT090308R-F56 WQM35
- Manufacturer Grade: WQM35
- Mounting Hole Diameter - Decimal: 0.11 in
- Mounting Hole Diameter - Metric: 2.794 mm
- Part Number: 5026008
- Rake: Positive
- Relief Angle: 11 Degree
- Shape: Parallelogram
- F56 Geometry - The universal one
- For medium machining conditions
- Universal application for most materials
- 0.08 to 0.2 mm cutting edge tolerance
- 0.05 to 0.15 mm inscribed circle tolerance
- +/-0.13 mm thickness tolerance
- 1.2 mm width face chamfer
- 2 cutting edges
- 40 to 60 deg double countersink hole
Standard/Approvals:WQM35, APMT090308R-F56 WQM35
Walter USA 5026008 APMT | 090308 | Solid Carbide | WQM35 | Milling Insert
