Walter Tools

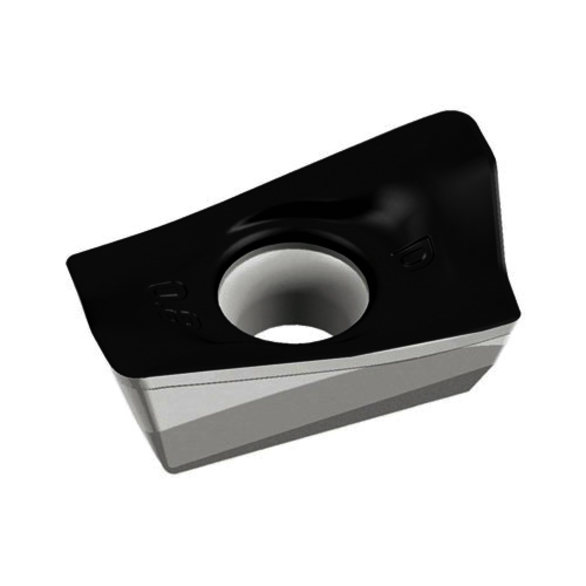

Walter 5886204 ADMT080304R-D56 WKP35S Milling Insert
WALTER 5886204
$29.50
/ EA
Out of Stock
- Insert Size: 080304
- Material: Solid Carbide
- Material Grade: P35; K35
- Insert Style: ADMT
- Manufacturer's Grade: WKP35S
- Width: 0.266 in
- Length: 0.375 in
- Inscribed Circle: 6.750 mm
- Thickness: 0.132 in
- ANSI Number: ADMT080304R-D56 WKP35S
- Chipbreaker: D56
- Clearance Angle: 15 deg
- Coating: TiCN+Al2O3+(TiCN)
- Coating Process: CVD
- Corner Facet Length: 0.047 in
- Corner Radius: 0.0157 in
- Cutting Edge Length: 0.375 in
- Finish: CVD
- Hole Diameter - Metric: 2.800 mm
- Included Angle: 85 Degree
- Inscribed Circle Size: 0.266 in
- Insert Hand: Right Hand
- ISO Number: ADMT080304R-D56 WKP35S
- Manufacturer Grade: WKP35S
- Mounting Hole Diameter - Decimal: 0.11 in
- Mounting Hole Diameter - Metric: 2.794 mm
- Number Of Cutting Edges: 2
- Part Number: 5886204
- Primary Workpiece Material: Cast Iron, Steel
- Rake: Positive
- Mechanical post-treatment - unique residual stress condition, increased process reliability
- Extremely smooth rake face for optimum tribochemical wear resistance
- Silver flank face indicator layer for extremely easy wear detection
Standard/Approvals:WKP35S, ADMT080304R-D56 WKP35S
Walter USA 5886204 ADMT | 080304 | Solid Carbide | WKP35S | TiCN+Al2O3+(TiCN) | Milling Insert
