Walter 6192402 LNHU090408R-L55T WKP35S Milling Insert

WALTER 6192402
$37.12 / EA
Out of Stock

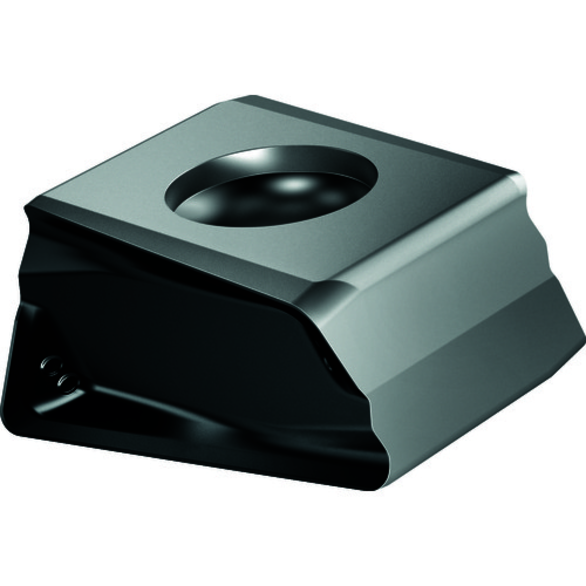

Image for WALTER 6192402
  • Insert Size: 090408
  • Material: Solid Carbide
  • Material Grade: WKP35S
  • Insert Style: LNHU
  • Width: 8.500 mm
  • Length: 9.000 mm
  • Inscribed Circle: 0.3540 in
  • Thickness: 4.500 mm
  • ANSI Number: LNHU090408R-L55T WKP35S
  • Chipbreaker: L55T
  • Clearance Angle: 0 deg
  • Coating: TiCN+Al2O3+TiCN
  • Coating Process: CVD
  • Corner Facet Length: 0.043 in
  • Corner Radius: 0.800 mm
  • Cutting Edge Length: 0.354 in
  • Finish: CVD
  • Hole Diameter - Metric: 3.400 mm
  • Included Angle: 90 Degree
  • Insert Hand: Neutral
  • ISO Number: LNHU090408R-L55T WKP35S
  • Manufacturer Grade: WKP35S
  • Mounting Hole Diameter - Decimal: 0.134 in
  • Mounting Hole Diameter - Metric: 3.403 mm
  • Part Number: 6192402
  • Rake: Negative
  • Relief Angle: 0 Degree
  • Shape: Tangential Rhombic
  • Mechanical post-treatment - unique residual stress condition, increased process reliability
  • Extremely smooth rake face for optimum tribochemical wear resistance
  • Silver flank face indicator layer for extremely easy wear detection

Standard/Approvals:WKP35S, LNHU090408R-L55T WKP35S

Walter USA 6192402 LNHU | 090408 | Solid Carbide | WKP35S | TiCN+Al2O3+TiCN | Milling Insert
