Walter 6369555 LNHU160708R-L55T WKP35S Milling Insert

WALTER 6369555
$45.18 / Order multiples of 10 EA
Out of Stock

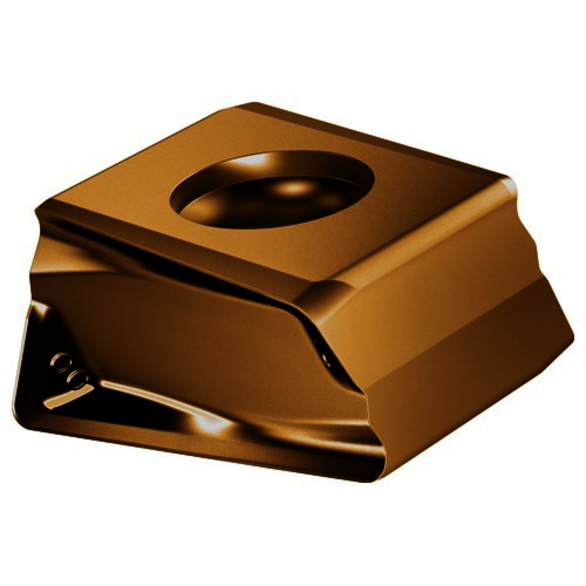

Image for WALTER 6369555
  • Insert Size: 160708
  • Material: Solid Carbide
  • Material Grade: WKP35S
  • Insert Style: LNHU
  • Width: 15.500 mm
  • Length: 16.000 mm
  • Thickness: 7.200 mm
  • ANSI Number: LNHU160708R-L55T WKP35S
  • Chipbreaker: L55T
  • Clearance Angle: 0 deg
  • Coating: TiCN+Al2O3+TiCN
  • Coating Process: CVD
  • Corner Facet Length: 0.091 in
  • Corner Radius: 0.800 mm
  • Cutting Edge Length: 0.63 in
  • Finish: CVD
  • Hole Diameter - Metric: 5.500 mm
  • Included Angle: 90 Degree
  • Insert Hand: Neutral
  • ISO Number: LNHU160708R-L55T WKP35S
  • Manufacturer Grade: WKP35S
  • Mounting Hole Diameter - Decimal: 0.217 in
  • Mounting Hole Diameter - Metric: 5.511 mm
  • Part Number: 6369555
  • Rake: Negative
  • Relief Angle: 0 Degree
  • Shape: Tangential Rhombic
  • Mechanical post-treatment - unique residual stress condition, increased process reliability
  • Extremely smooth rake face for optimum tribochemical wear resistance
  • Silver flank face indicator layer for extremely easy wear detection

Standard/Approvals:WKP35S, LNHU160708R-L55T WKP35S

Walter USA 6369555 LNHU | 160708 | Solid Carbide | WKP35S | TiCN+Al2O3+TiCN | Milling Insert
