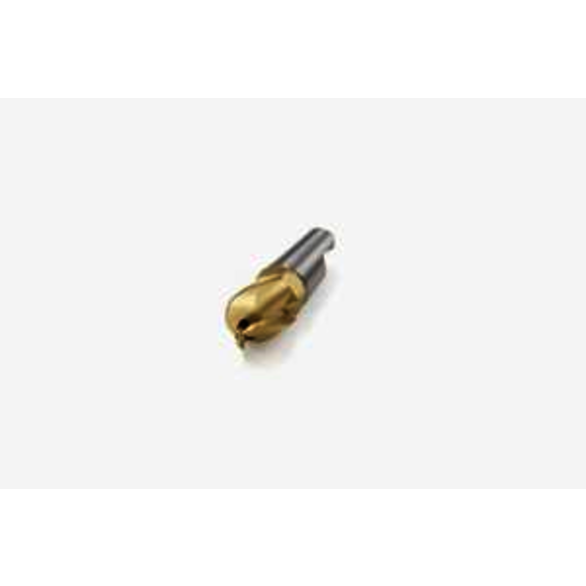

Seco 00075646 Minimaster™ Milling Tip Insert, ANSI Code: MM16-0.630-B90A30-M06 F40M, MM16 Milling Tip Style, Ball Nose Milling Tip, Solid Carbide, 8 mm Corner Radius, Manufacturer's Grade: F40M, 3 Flutes
SECO 00075646
$205.20
/ EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Milling Tip Style: MM16
- Milling Tip Type: Ball Nose
- Material: Solid Carbide
- Cutting Diameter - Metric: 16 mm
- Manufacturer's Grade: F40M
- Corner Radius - Metric: 8 mm
- Geometry: M06
- Maximum Depth of Cut - Metric: 19 mm
- Number of Flutes: 3
For machining super alloys
Seco Milling Tip Insert | Series: Minimaster | MM16 Milling Tip | Ball Nose Milling Tip | 16 mm Diameter Cutting | 19 mm Maximum Depth of Cut | 3 Flutes | M06 Geometry | 8 mm Corner Radius | Manufacturer's Grade: F40M | ANSI Code: MM16-0.630-B90A30-M06 F40M | ISO Code: MM16-16019-B90A30-M06 F40M | Solid Carbide | PVD-TiAlN+TiN Coated
