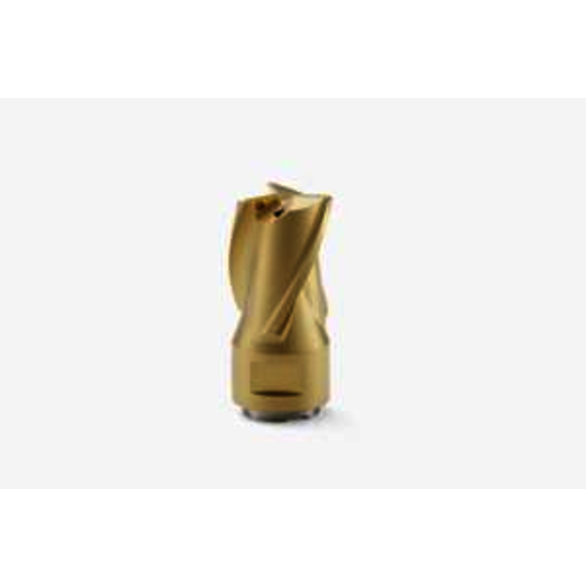

Seco 02687013 Minimaster™ Plus Milling Tip Insert, ANSI Code: MP10-00.375-.47-R016Z3-M03 MP3000, MP10 Milling Tip Style, Ball Nose Milling Tip, Solid Carbide, 0.4 mm Corner Radius, Manufacturer's Grade: MP3000, 3 Flutes
SECO 02687013
$86.40
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlN Coated
- Milling Tip Style: MP10
- Milling Tip Type: Ball Nose
- Material: Solid Carbide
- Cutting Diameter: 9.5 in
- Manufacturer's Grade: MP3000
- Corner Radius: 0.4 in
- Geometry: M03
- Maximum Depth of Cut - Metric: 12 mm
- Number of Flutes: 3
Slot Milling and Square Shoulder Milling
Seco Milling Tip Insert | Series: Minimaster Plus | MP10 Milling Tip | Ball Nose Milling Tip | 9.5 mm Diameter Cutting | 12 mm Maximum Depth of Cut | 3 Flutes | M03 Geometry | 0.4 mm Corner Radius | Manufacturer's Grade: MP3000 | ANSI Code: MP10-00.375-.47-R016Z3-M03 MP3000 | ISO Code: MP10-09512R04Z3-M03 MP3000 | Solid Carbide | PVD-TiAlN Coated
