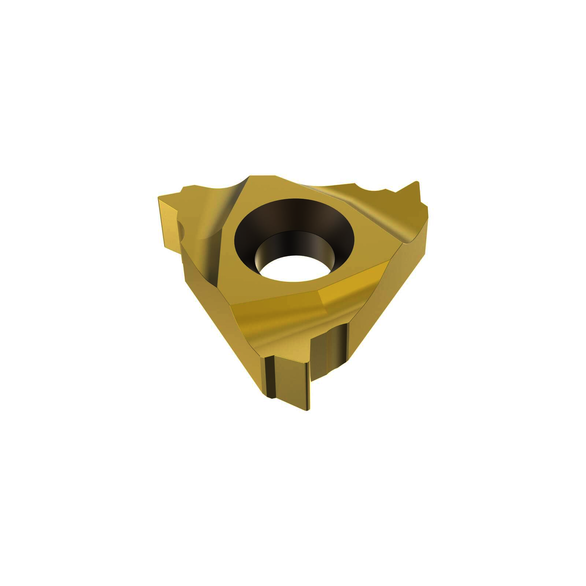

Seco 00076257 Snap-Tap® Laydown Threading Insert, ANSI Code: 16NR2.0ISO CP200, 16NR Insert, Internal Thread, ISO Thread, 2 mm Pitch, Right Hand Cutting, Manufacturer's Grade: CP200, Material Grade: M
SECO 00076257
$44.88
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Size: 16
- Thread Standard: ISO
- Manufacturer's Grade: CP200
- Material Grade: M
- Material: Carbide
- Corner Radius: 0.17 in
- Cutting Direction: Right Hand
- Included Angle: 60 deg
- Inscribed Circle - Metric: 9.5 mm
- Pitch: 2 in
- Thickness: 3.5 in
- Thread Type: Internal
For high strength steel, martensitic stainless steel, cast iron with low hardness, super alloys and titanium alloys
Seco Threading Insert | Laydown | Series: Snap-Tap | 16NR Insert | 16 Insert | Internal Thread | ISO Thread Standard | 2 mm Pitch | 9.5 mm Inscribed Circle | 3.5 mm Thickness | 16.5 mm Length | ANSI Code: 16NR2.0ISO CP200 | ISO Code: 16NR2.0ISO CP200 | 0.17 mm Corner Radius | 60 deg Included Angle | Manufacturer's Grade: CP200 | Right Hand Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M
