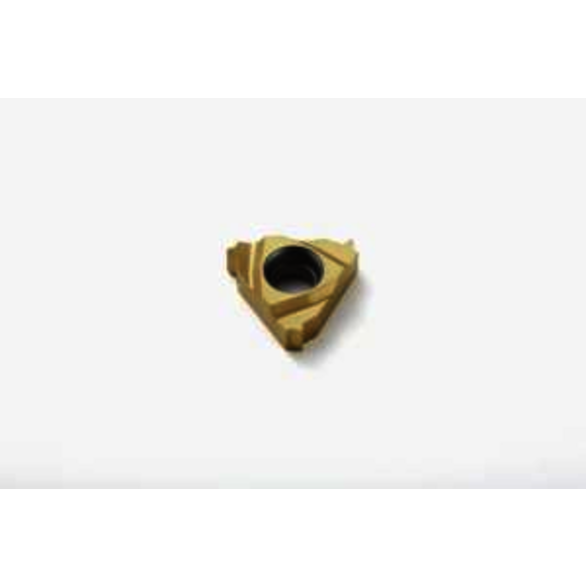

Seco 00077860 Snap-Tap® Laydown Threading Insert, ANSI Code: 09NR18NPT CP500, 09NR Insert, 18 TPI, Internal Thread, NPT Thread, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M
SECO 00077860
$50.27
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: 09NR
- Insert Size: 9
- Thread Standard: NPT
- Manufacturer's Grade: CP500
- Material Grade: M
- Material: Carbide
- Corner Radius: 0.06 in
- Cutting Direction: Right Hand
- Finish: PVD
- Included Angle: 60 deg
- Inscribed Circle - Metric: 5.6 mm
- Inscribed Circle Size: 7/32 in
- Length: 9.525 mm
- Product Name: Threading Insert
- Thickness: 2.4 in
- Thread Form Type: NPT
- Thread Type: Internal
- Threads per Inch: 18
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
Seco Threading Insert | Laydown | Series: Snap-Tap | 09NR Insert | 9 Insert | Internal Thread | NPT Thread Standard | 18 TPI Threads per Inch | 5.6 mm Inscribed Circle | 2.4 mm Thickness | 9.6 mm Length | ANSI Code: 09NR18NPT CP500 | ISO Code: 09NR18NPT CP500 | 0.06 mm Corner Radius | 60 deg Included Angle | Manufacturer's Grade: CP500 | Right Hand Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M
