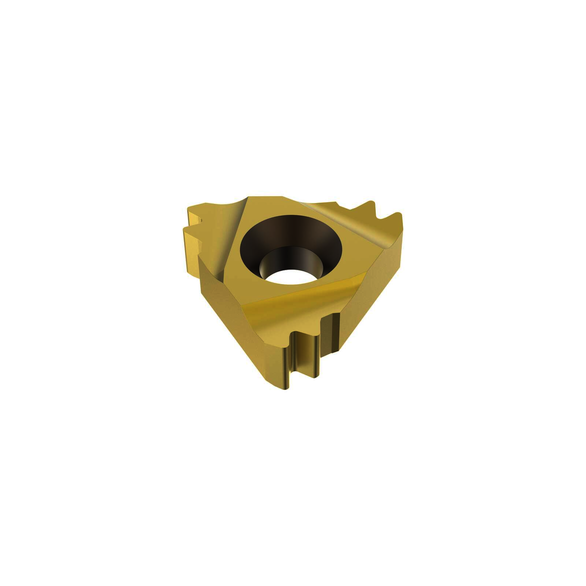

Seco 00731890 Snap-Tap® Laydown Threading Insert, ANSI Code: 27NR8APIRD2M CP300, 27NR Insert, 8 TPI, Internal Thread, API Round Casing Thread, Right Hand Cutting, Manufacturer's Grade: CP300, Material Grade: P
SECO 00731890
$165.11
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Size: 27
- Thread Standard: API Round Casing
- Manufacturer's Grade: CP300
- Material Grade: P
- Material: Carbide
- Corner Radius: 0.46 in
- Cutting Direction: Right Hand
- Included Angle: 60 deg
- Inscribed Circle - Metric: 15.9 mm
- Thickness: 6.2 in
- Threads per Inch: 8
- Thread Type: Internal
Seco Threading Insert | Laydown | Series: Snap-Tap | 27NR Insert | 27 Insert | Internal Thread | API Round Casing Thread Standard | 8 TPI Threads per Inch | 15.9 mm Inscribed Circle | 6.2 mm Thickness | 27 mm Length | ANSI Code: 27NR8APIRD2M CP300 | ISO Code: 27NR8APIRD2M CP300 | 0.46 mm Corner Radius | 60 deg Included Angle | Manufacturer's Grade: CP300 | Right Hand Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: P
