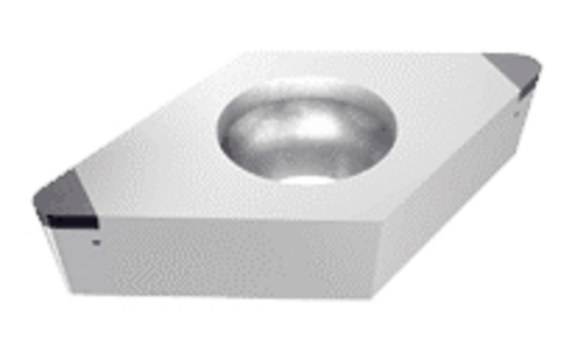

Iscar 6817947 DCMW 3-1 IB20H CBN-Tip Turning Insert
ISCAR 6817947
$90.60
/ EA
Out of Stock
- Insert Style: DCMW
- Material: CBN Tip
- Length: 0.457 in
- Thickness: 0.156 in
- Corner Radius: 0.016 in
- Chipbreaker: M2
- Included Angle: 55 deg
- Inscribed Circle Size: 0.375 in
- Material Grade: IB20H
- Screw Diameter - Decimal: 0.173 in
- Screw Diameter - Metric: 4.394 mm
- Shape: Diamond
INSERT DCMW 3-1-M2 IB20H
