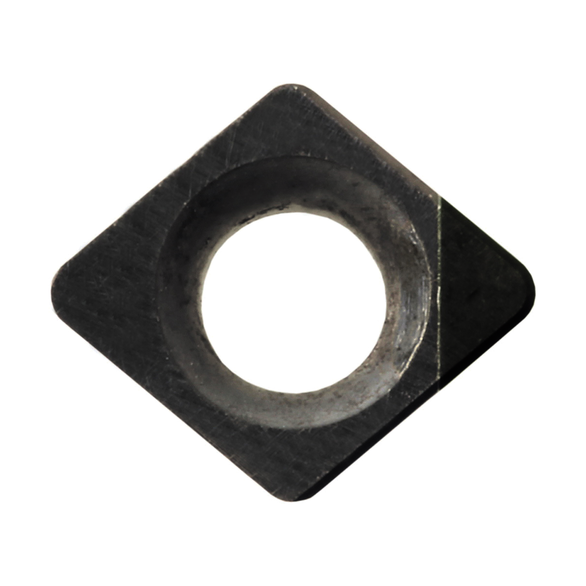

KYOCERA CCMW110905S00435SETKBN10M 1-Cutting Edge Indexable Turning Insert With Hole, 40 to 60 deg Countersink, ANSI Code: CCMW110905S00435SETKBN10M, CCMW Insert, Material Grade: H, #110905 Insert, Rhombic Shape, 03 Seat, Positive Rake, Neutral Cutting, CBN
KYOIND TBX01300
$51.75
/ EA
Out of Stock
- Finish/Coating: PVD-MEGACOAT
- Insert Style: CCMW
- Insert Size: #110905
- Material: CBN
- Inscribed Circle: 0.1378 in
- Thickness: 0.0551 in
- Corner Radius: 0.0079 in
- Manufacturer's Grade: KBN10M
- Cutting Direction: Neutral
- Hole Diameter: 0.0748 in
- Included Angle: 80 deg
- ISO Code: CCMW030102S01035SET
- Material Grade: H
- Rake: Positive
- Relief Angle: 7 deg
- Seat Size: 03
- Shape: Rhombic
- Type: 1-Cutting Edge
INSERT CCMW110905S00435SET KBN10M
