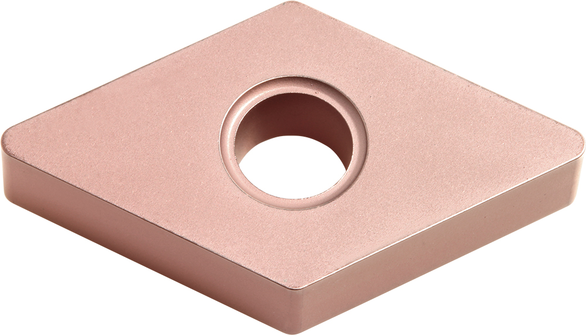

KYOCERA DNMA431CA315 Turning Insert, ANSI Code: DNMA431 CA315, DNMA Insert, Material Grade: K, 431 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturer's Grade: CA315
KYOIND TMD01940
$10.37
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN/Al2O3 Coated
- Insert Style: DNMA
- Insert Size: 431
- Material: Carbide
- Manufacturer's Grade: CA315
- Corner Radius - Fractional: 1/64 in
- Cutting Direction: Neutral
- Finish: TiCN/Al2O3
- Hole Diameter: 0.203 in
- Included Angle: 55 deg
- Inscribed Circle - Fractional: 1/2 in
- Inscribed Circle Size: 0.5 in
- ISO Code: DNMA150404 CA315
- Material Grade: K
- Rake: Negative
- Seat Size: 15
- Shape: Rhombic
- Thickness - Fractional: 3/16 in
- Weight: 0.31 lbs
Standards:
ISO Code DNMA150404
ISO Code DNMA150404
