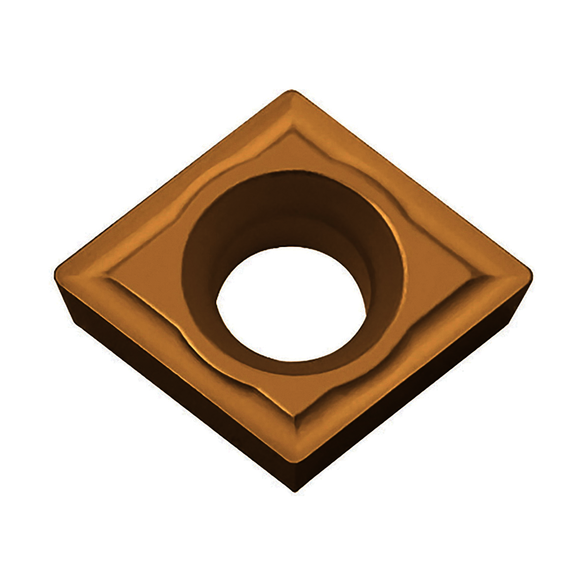

KYOCERA CPMH25152TN60 2-Cutting Edge Indexable Turning Insert With 1-Sided Chipbreaker, Hole, 70 to 90 deg Countersink, ANSI Code: CPMH25152TN60, CPMH Insert, Material Grade: P, #25152 Insert, Rhombic Shape, 25 Seat, Positive Rake, Neutral Cutting, Cermet
KYOIND TSJ00360
$6.21
/ EA
Out of Stock
- Finish/Coating: Uncoated/TiCN/NbC Coated
- Insert Style: CPMH
- Insert Size: #25152
- Material: Cermet
- Manufacturer's Grade: TN60
- Corner Radius - Fractional: 1/32 in
- Cutting Direction: Neutral
- Hole Diameter: 0.1378 in
- Included Angle: 80 deg
- Inscribed Circle - Fractional: 5/16 in
- ISO Code: CPMH25152TN60
- Material Grade: P
- Rake: Positive
- Relief Angle: 11 deg
- Seat Size: 25
- Shape: Rhombic
- Thickness - Fractional: 3/32 in
- Type: 2-Cutting Edge
INSERT CPMH25152 TN60 CERMET TURNING
