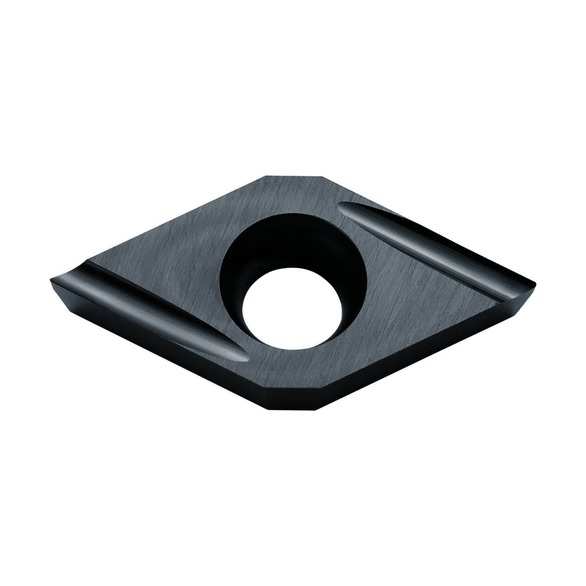

KYOCERA DCGT32504ERUTN60 2-Cutting Edge Indexable Turning Insert With 1-Sided Chipbreaker, Hole, 40 to 60 deg Countersink, ANSI Code: DCGT32504ERUTN60, DCGT Insert, Material Grade: P, #32504 Insert, Rhombic Shape, 11 Seat, Positive Rake, Right Hand Cutting
KYOIND TSJ00630
$16.36
/ EA
Out of Stock
- Finish/Coating: Uncoated/TiCN/NbC Coated
- Insert Style: DCGT
- Insert Size: #32504
- Material: Cermet
- Corner Radius: 0.0039 in
- Manufacturer's Grade: TN60
- Chipbreaker: U
- Cutting Direction: Right Hand
- Hole Diameter: 0.1732 in
- Included Angle: 55 deg
- Inscribed Circle - Fractional: 3/8 in
- ISO Code: DCGT11T301ER-U
- Material Grade: P
- Rake: Positive
- Relief Angle: 7 deg
- Seat Size: 11
- Shape: Rhombic
- Thickness - Fractional: 5/32 in
- Type: 2-Cutting Edge
INSERT DCGT32504ERU TN60 CERMET TURNING
