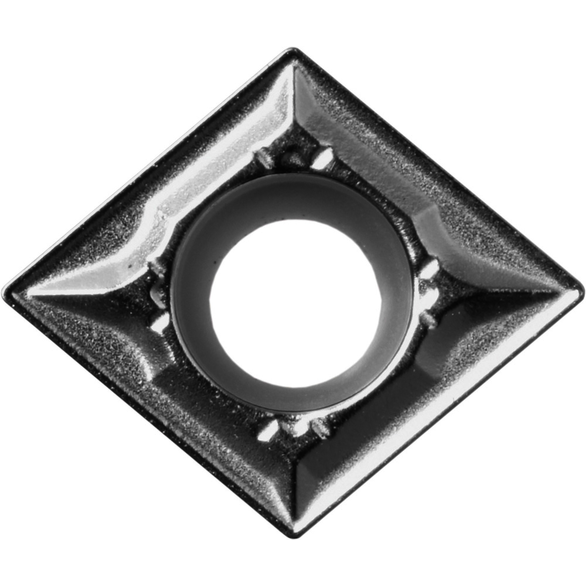

KYOCERA CCMT21505GKTN610 ISOI 2-Cutting Edge Indexable Turning Insert With 1-Sided Chipbreaker, Hole and 40 to 60 deg Countersink, ANSI Code: CCMT21505GKTN610, CCMT Insert, Material Grade: P, #21505 Insert, Diamond Shape, 06 Seat, Positive Rake, Cermet
KYOIND TSS01485
$11.75
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: Uncoated/TiCN Coated
- Insert Style: CCMT
- Insert Size: #21505
- Material: Cermet
- Thickness: 0.0937 in
- Corner Radius: 0.0079 in
- Manufacturer's Grade: TN610
- Chipbreaker: GK
- Cutting Direction: Neutral
- Hole Diameter: 0.1102 in
- Included Angle: 80 deg
- Inscribed Circle - Fractional: 1/4 in
- ISO Code: CCMT060202GK
- Material Grade: P
- Rake: Positive
- Relief Angle: 7 deg
- Seat Size: 06
- Series: ISOI
- Shape: Diamond
- Type: 2-Cutting Edge
INSERT CCMT21505GK TN610 CERMET TURNING
