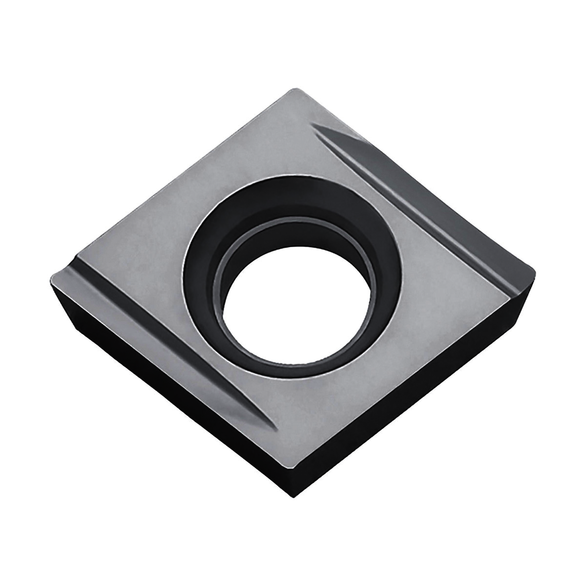

KYOCERA CPMH25151RYTN610 ISOI 2-Cutting Edge Indexable Turning Insert With 1-Sided Chipbreaker, Hole and 70 to 90 deg Countersink, ANSI Code: CPMH25151RYTN610, CPMH Insert, Material Grade: P, #25151 Insert, Diamond Shape, 08 Seat, Positive Rake, Cermet
KYOIND TSS02221
$7.76
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: Uncoated/TiCN Coated
- Insert Style: CPMH
- Insert Size: #25151
- Material: Cermet
- Thickness: 0.0937 in
- Corner Radius: 0.0157 in
- Manufacturer's Grade: TN610
- Chipbreaker: Y
- Cutting Direction: Right Hand
- Hole Diameter: 0.1378 in
- Included Angle: 80 deg
- Inscribed Circle - Fractional: 5/16 in
- ISO Code: CPMH080204R-Y
- Material Grade: P
- Rake: Positive
- Relief Angle: 11 deg
- Seat Size: 08
- Series: ISOI
- Shape: Diamond
- Type: 2-Cutting Edge
INSERT CPMH25151RY TN610 CERMET TURNING
